ā Panel adaptor (Option for horizontal mounting only)

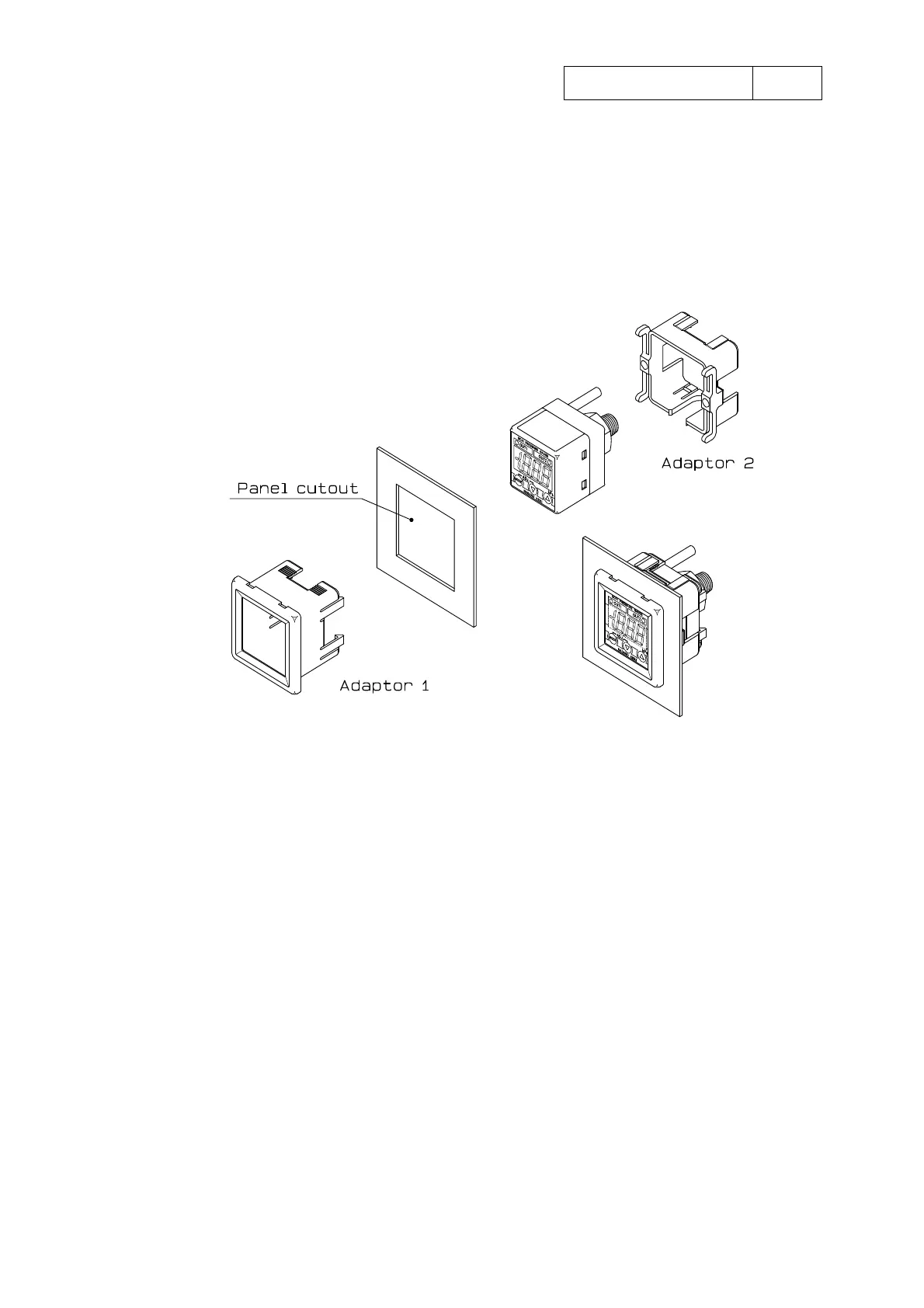

Insert the adaptor 2 from the front side of main body in the direction shown below.
Insert the adaptor 1 from the obverse side of the panel cutout and insert the main body form
the reverse side of panel cutout. Then fix the snaps of adaptor 1 onto the main body.
Insert
the adaptor 2 from the back side of the main body which is fixed to the adaptor 1. Push it until
the gap between panel surface and the adaptor becomes minimum.
