TY-GC31-004A 8/24
Rev.B
4. Mounting
For mounting, select a location where there is no vibration or direct sunlight. Avoid moisture,
particles, oil and water, etc.
● Piping
When mounting R1/8 and R1/4 screw parts, hang a spanner (Width of 2 sides :17 mm) on
metallic hex part so that no excessive force is applied to main body (resin).
Mounting torque shall
be 8N・m or lower.
Also, make sure to wrap it with seal tape so that there will be no leakage.
For mounting of M5 screw, perform it as the description above.
For mounting torque and
leak treatment, follow the instructions of the fitting.
●

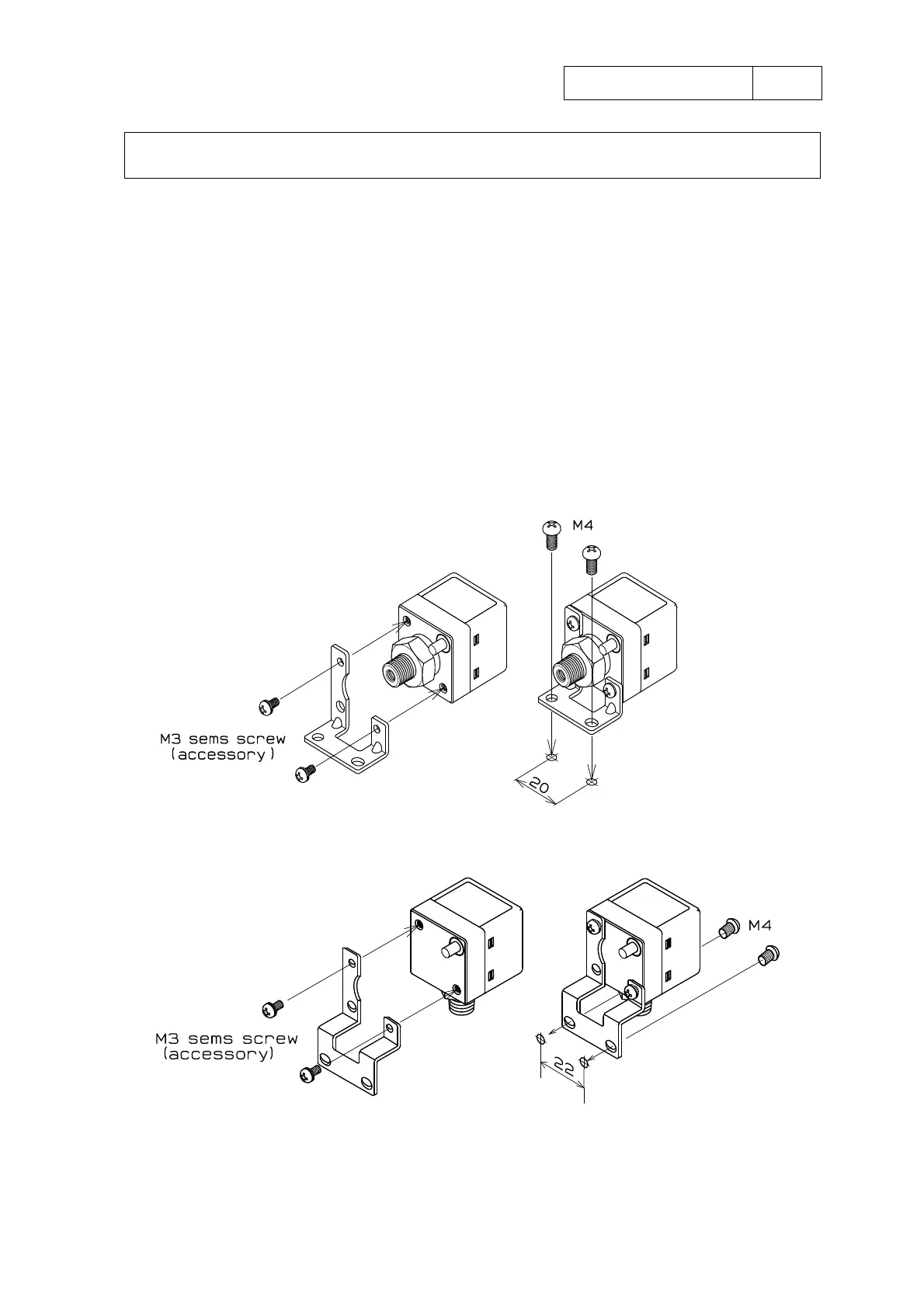

L / Key-shaped bracket (Option)
For L / Key-shaped bracket, use M3 sems screw. Mounting torque shall be 0.3 N・m or lower.
L-shaped bracket
Key-shaped bracket
