TY-GC31-004A 11/24
Rev.B

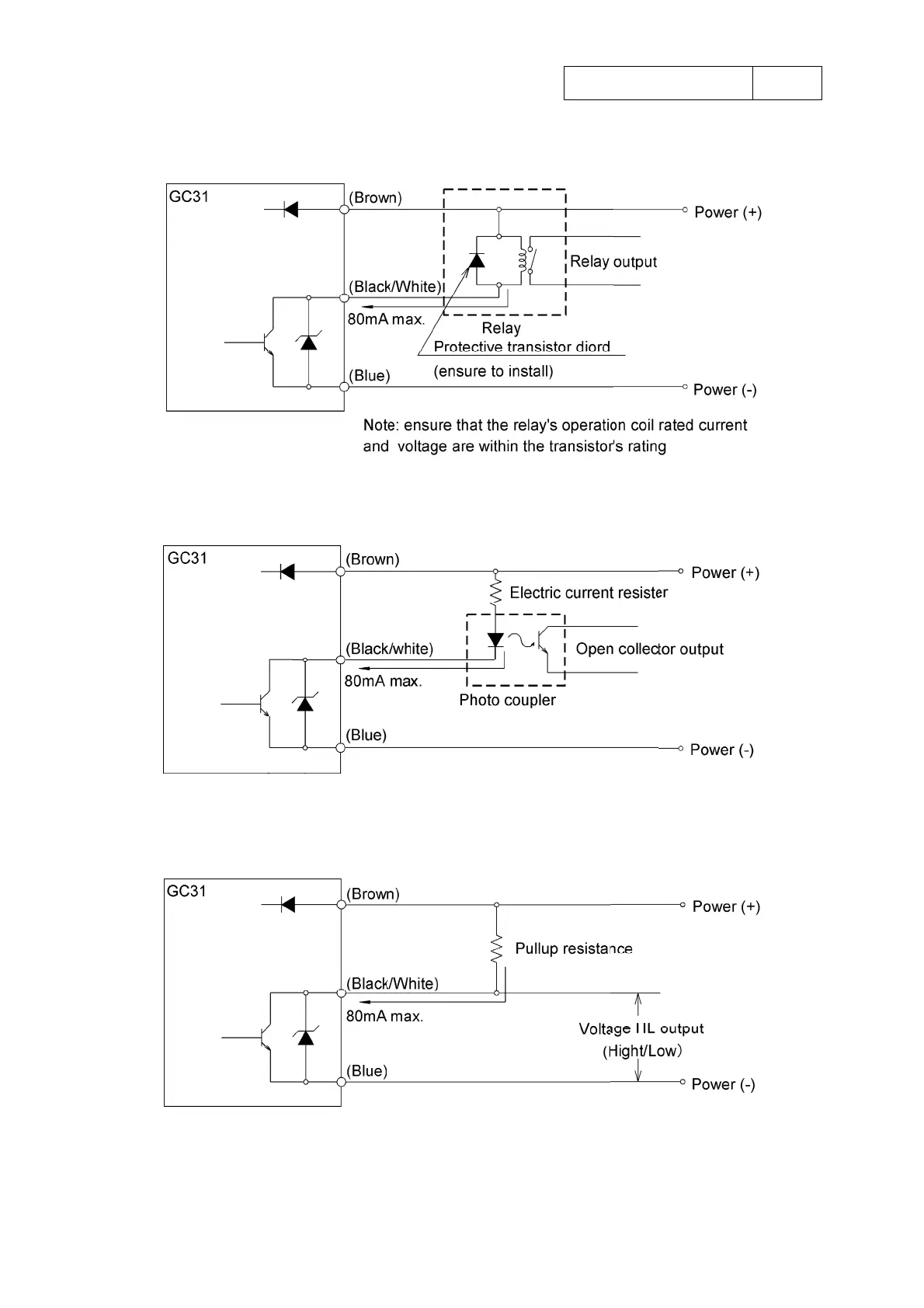

b. Example of NPN open collector usage 1(Wiring to relay)
c. Example of NPN open collector usage 2 (Wiring to photo coupler)
d. Example of NPN open collector usage 3 (Voltage output)
