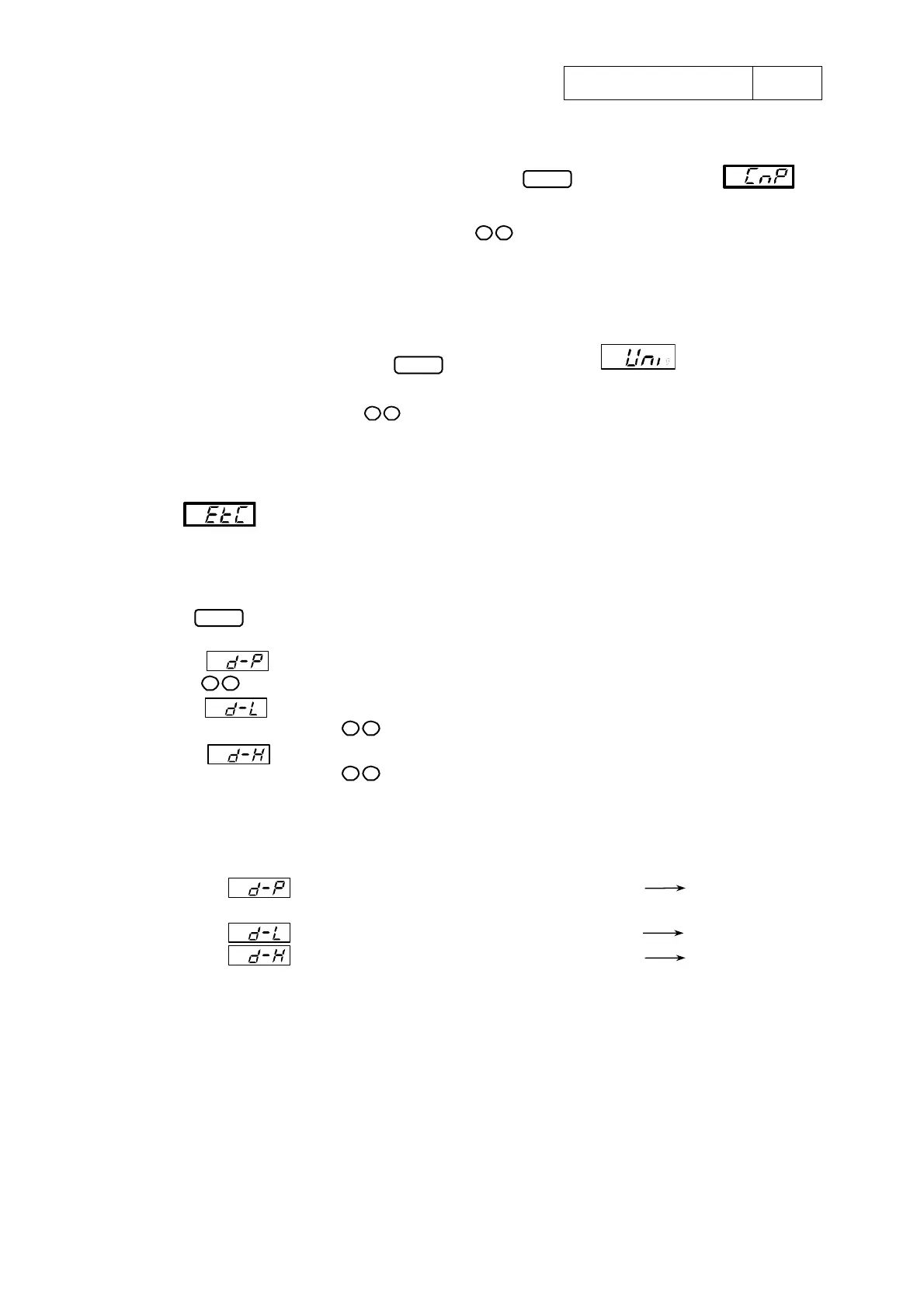

 Comparator operation selection
Select “Comparator Operation Selection” with the key. The message
is
displayed for 1 sec. and then the current setting is displayed. Select either hysteresis or
window comparator operation mode with the
▲
▼
keys. Note that this device has 2 points
for comparator output. However, both points become same operation mode.
 Display selection
Select “Display Selection” with the key. The message
is displayed for 1
sec. and then the current setting is displayed. Select pressure display from either SI unit (Pa or
kPa) or display scaling with the
▲
▼
keys.
 Scaling of LED display
When
is selected in “Display Selection”, the LED display value for applied pressure
is displayed as an arbitrary scaling display. This is a function to scale the LED display value for
the min/max pressure value. It has no effect on the relation between the applied pressure and
analog output.
Use the key to set "Decimal point position", "Minimum pressure range display value"
and "Maximum pressure range display value" of "Display scaling".
1. After is displayed for 1 second, the current decimal point position is displayed.
Use
▲
▼
keys to set the decimal point position.
2. After is displayed for 1 second, the current display value of minimum pressure
range is displayed. Use
▲
▼
keys to set the display value.
3. After is displayed for 1 second, the current display value of maximum pressure
range is displayed. Use
▲
▼
keys to set the display value.
Follow the description above to perform the LED display setting.
Example) For the pressure range from 0.00 to 5.00 MPa (0 to 100 %F.S.), set display
scaling from 0.0 to 100.0.
: 0.02 0.1
Minimum pressure range value : 0.00 0.0
Maximum pressure range value : 5.00 100.0
