Nagano Keiki GC62 Series User Manual

11 TY-GC62-010A Rev.2
(2) Wall mount
When screwing it to the mounting surface,
tightening torque should be 1 N m or less.

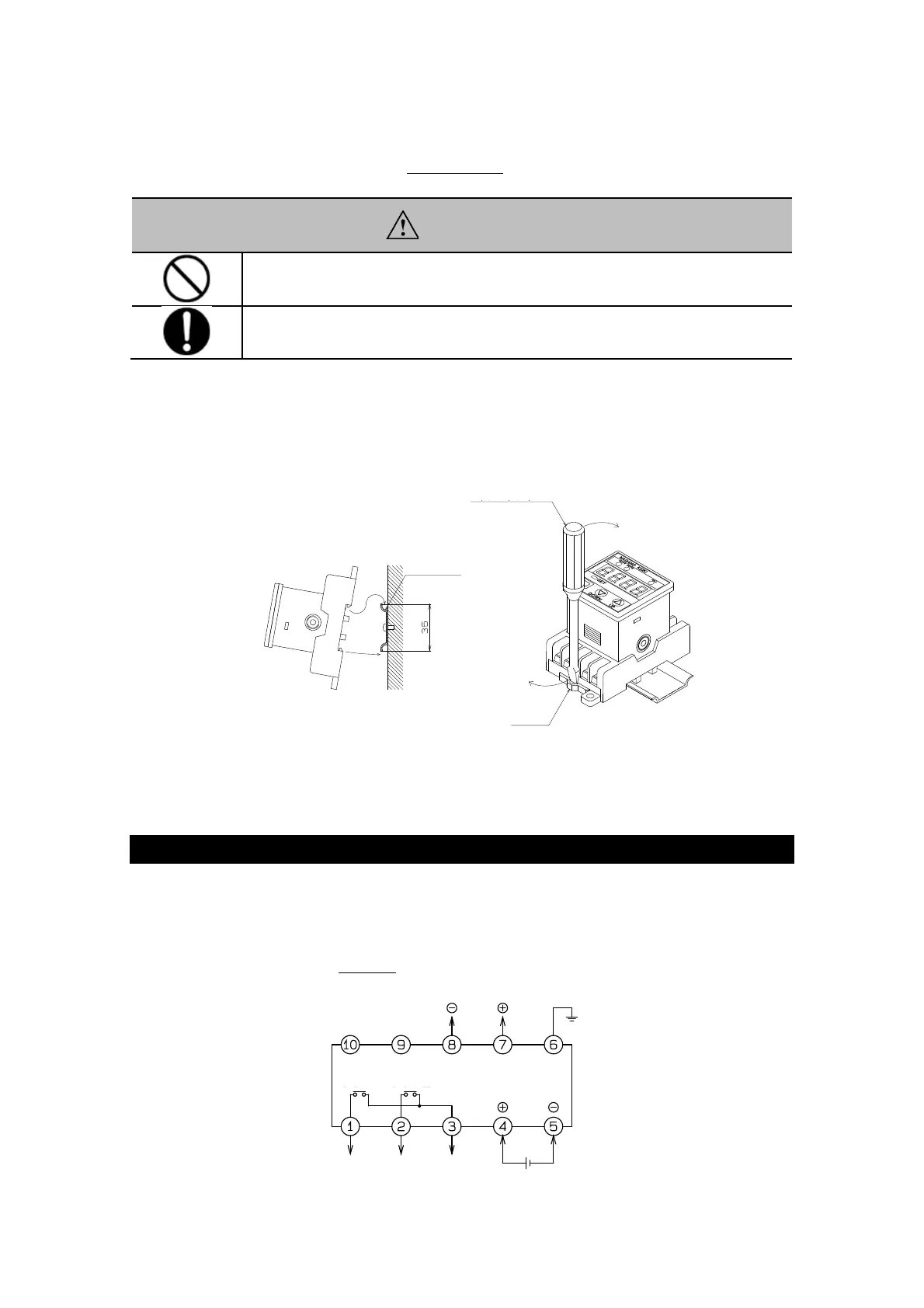

(3) DIN rail mount
Hang the hook on the back of the main unit to the DIN rail first, and press the
bottom to fit the hook. To remove it, insert a slotted screwdriver into the groove of
the stopper at the bottom and pull it.
(Installation) (Uninstallation)
6. Wiring and Connection
■
6.1 Wiring
Follow the figures to perform wiring. Use M3 terminal screw. Always use a crimp terminal
(JIS C2805 Type R 1.25-3, or equivalent) for wiring. In that case, tightening torque to the
terminal screw should be 0.5 N m or less.
CAUTION
 Be careful not to cause an excessive impact on the product such
as hitting or dropping during installation of piping.
 Secure a space for maintenance activities.
<Fig.6-1>
<Fig.5-2>
Slotted screwdriver
Stopper
DIN rail
Unused
Analog output
Grounding
OUT1 OUT2
Unused
OUT1
OUT2
Output COM
Power
