16 TY-GC62-010A Rev.2

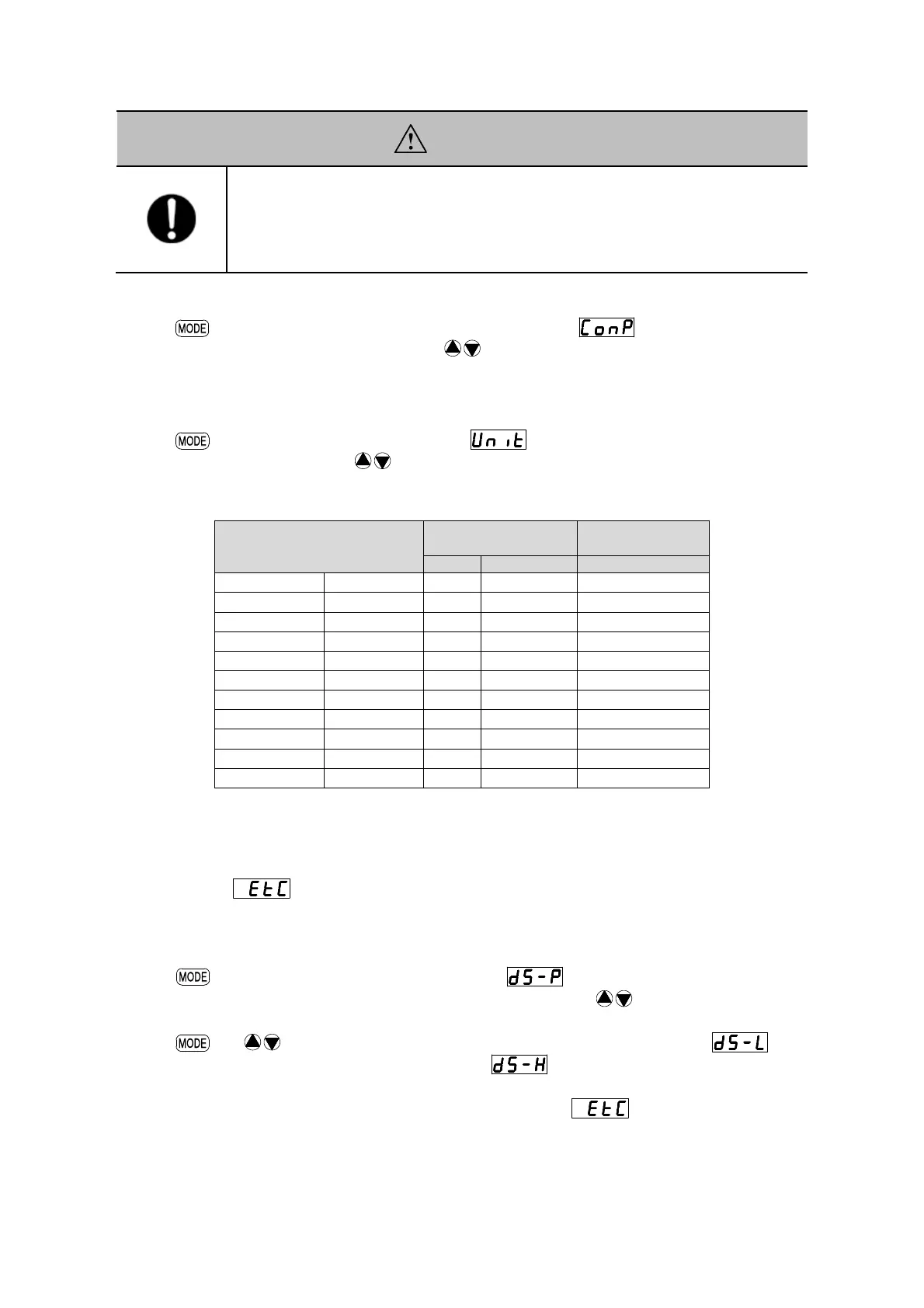

7.2.2 Selecting comparator operation
Use key to select ”Select Comparator Operation”. After is displayed for one
second, the current setting appears. Use keys to select either hysteresis or window
comparator.
7.2.3 Selecting the display
Use key to select ”Select Display”. After is displayed for one second, the
current setting appears. Use keys to select either pressure display in SI units (Pa or
kPa) or display scaling.
Pressure range
Max. differential
pressure value
Display scaling
* In case of compounding, (-) is used for negative pressure display.
7.2.4 LED display scaling
If you select in “Select Display”, the values to be displayed on LED display is
scaled to an arbitrary value against the applied pressure. This function scales the LED
display value to the minimum/maximum value of the pressure range, and does not affect
the relationship between applied pressure and analog output.
Use key to change to “Display Scaling”. After is displayed for one second, the
decimal point in the current Measurement Mode appears. Use keys to change the
decimal point.
Use and keys to set the display value of minimum pressure range ( ),
and display value of maximum pressure range ( ) as well.
Since the set value of the display scaling is stored internally, when display goes back to SI
units display in “Select Display”, you can use it by selecting again without
resetting.
CAUTION
When setting value is manipulated in the Function Setting Mode, all
setting values, including comparator, are recalculated and setting
value is overwritten. If the recalculated setting value falls outside
the display range, the setting value will be the maximum value or
the minimum value that can be internally processed.
