Nagman MTC 650 User Manual

NAG/IM/MTC650/01/22 13
Input for RTD, TC, mA and Voltage Test
RTD : The RTD Input Connection details are shown below :
2 Wire Use terminals BC for 2 wire with A, B and C, D to be short
3 Wire Use terminals A, B, C for 3 wire with C, D to be short
4 Wire Directly insert to A, B, C, D.
Thermocouple : For all TC, B for Positive (+) and C for
Negative (-)

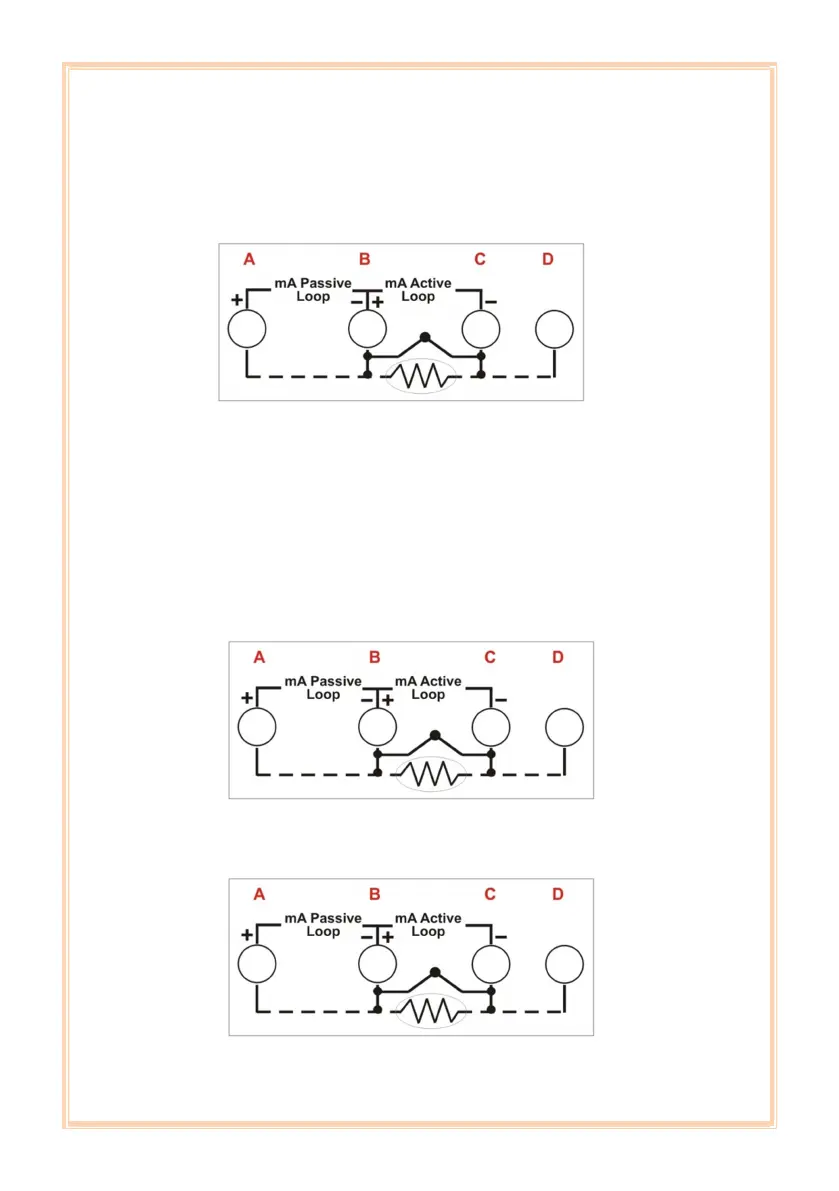

mA

Nagman MTC 650 Specifications

General

Brand	Nagman
Model	MTC 650
Category	Test Equipment
Language	English
