NAIT XS Integrated Amplifier
mains input
and fuse
cable
direction
marker
4 to 4 pin DIN
Interconnect Cables
240° 5 to 5 pin DIN

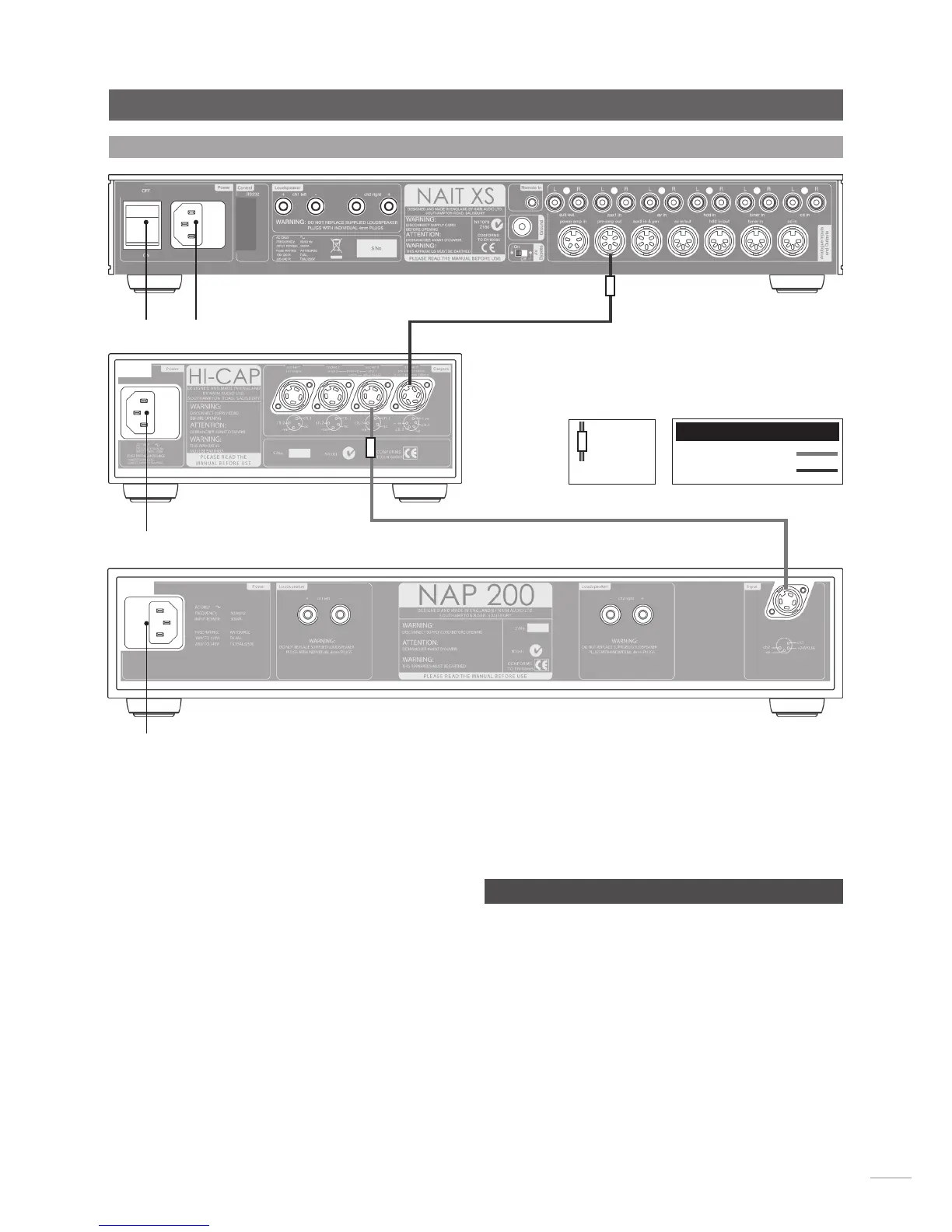

23.4 NAIT XS Connected to Hi-Cap Power Supply and NAP 200 Power Amplifier
mains input
and fuse
power
mains input
and fuse
Note: The NAIT XS should remain connected to
mains power at all times.
24 NAIT XS Specification
Input Sensitivities: 130mV, 47kΩ
Overload Margins: 34dB
(all inputs all audio frequencies)
Preamp Output Level: 0.775V, <50Ω
Line Output Level: 130mV, 600Ω
Power Output: Continuous 60 Watts per
channel into 8 Ohms
Auxiliary Power Outputs: For Naim phono stage
Quiescent Consumption: 20VA
Dimensions (H x W x D): 70 x 432 x 301mm
Weight: 8.6kg
Mains Supply: 100-120V or 220-240V, 50/60Hz
To Next Page
