NAC 552 Preamplifier

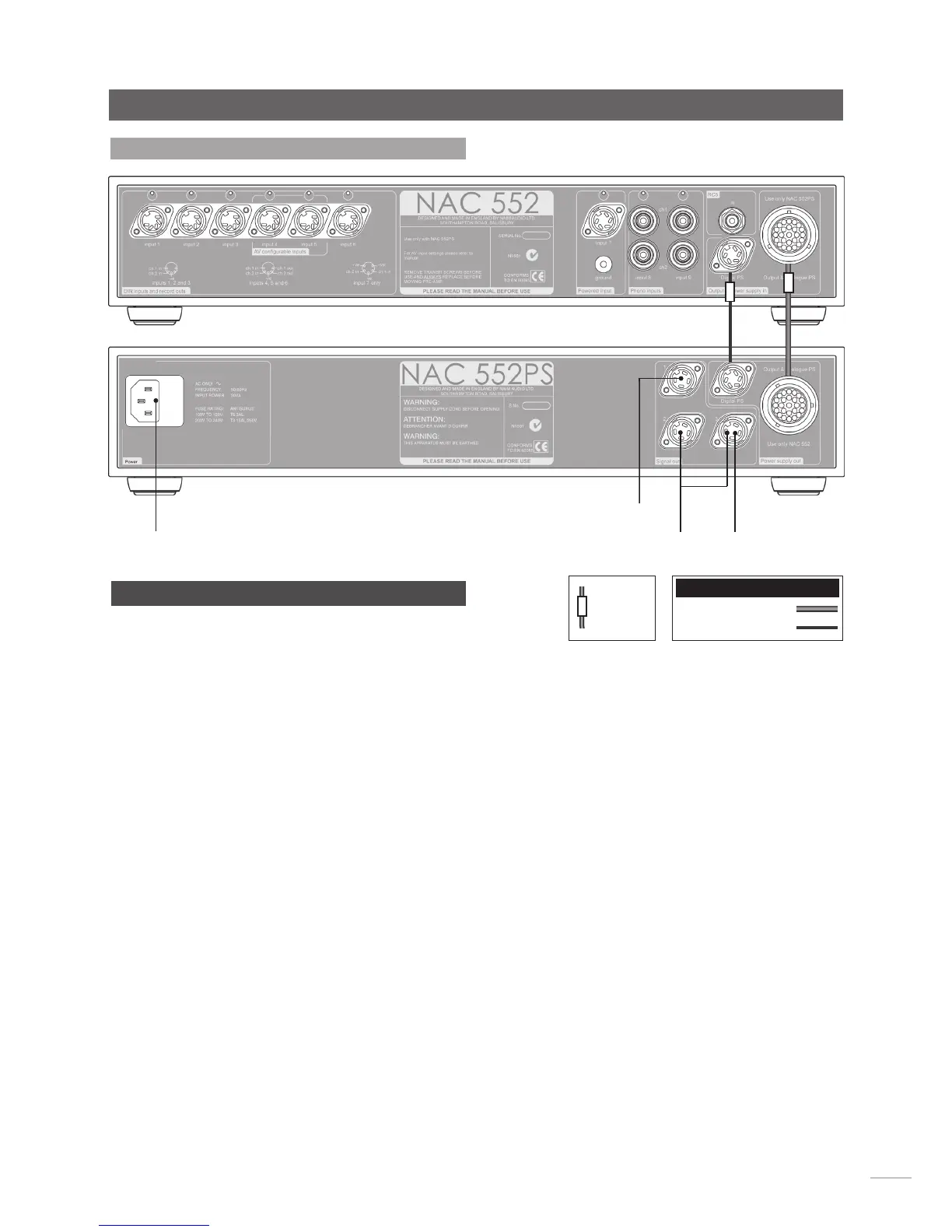

5.3 NAC 552 Connected to NAC 552PS
mains input
and fuse
Note: For best performance the Burndy and 5 pin DIN
cables should be run as close together as possible.
to stereo power
ampliers
to mono or dual mono
power ampliers
additional signal output
cable
direction
marker
NAC 552 Burndy
240° 5 to 5 pin DIN
Interconnect Cables
6 NAC 552/NAC 552PS Specification
Input Sensitivities: 75mV, 47kΩ
Overload Margins: 40dB
(all inputs all audio frequencies).
Main Output Level: 0.775V, <50Ω
Tape Output Level: 75mV, 600Ω
Auxiliary Power Outputs: For Naim phono stage
Dimensions (H x W x D): Both 87 x 432 x 314mm
Weight: NAC 552 - 12.9kg
NAC 552PS - 13.9kg
Mains Supply (NAC 552PS): 100-120V or 220-240V, 50/60Hz
