NAIM CD5si - CD555 Connections; Rear Panel; CD555 Connected to CD 555 PS

E4
RC5 input
Comms interface
DIN output
RCA phono outputs
left (ch1) and right
(ch2)
CD 555PS Power
Supply inputs
mains input
and fuse
CD Burndy
Cable 1
CD Burndy
Cable 2
Note: RCA phono and DIN output sockets should not be
connected simultaneously.
Note: The RC5 Input is intended to accept external control
signals for multi-room applications. Contact your dealer or
Naim Audio directly for further information.
Note: The optional RJ45 socket Comms Interface can provide
external control of the player in custom installations. Contact
your dealer or Naim Audio directly for further information.
CD555

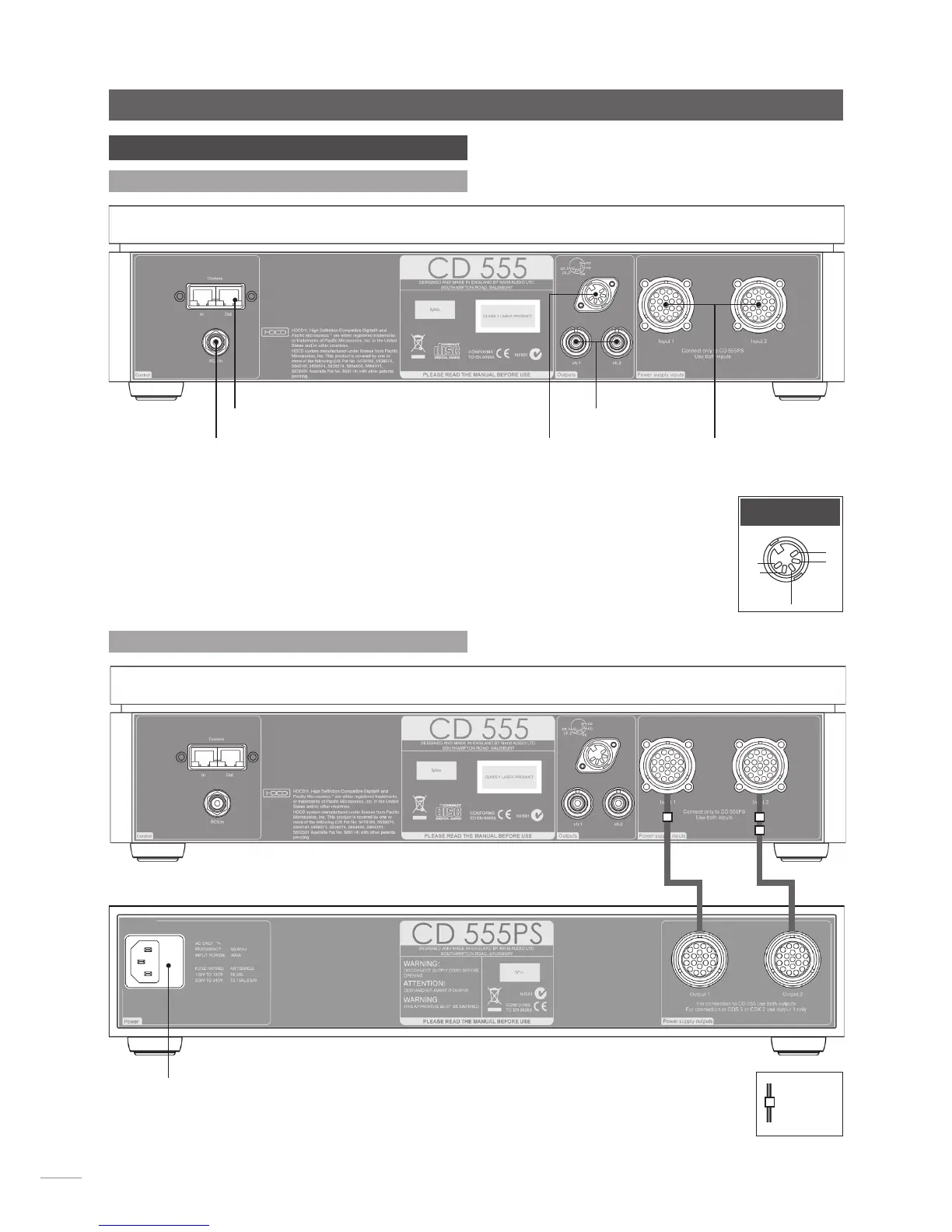

5 CD555 Connections
5.1 Rear Panel
5.2 CD555 Connected to CD 555PS
Cable
direction
marker
ch1
-ve
nc
nc
ch2
CD555
DIN Output
Note: Two different Burndy cables are required to connect the
CD555 to the CD 555PS. Cable 1, identified by a single band on
its direction marker, should be used with Sockets 1, and Cable
2, identified by a double band on its direction marker, should be
used with Sockets 2.
