E20
SUPERNAIT Integrated Amplifier

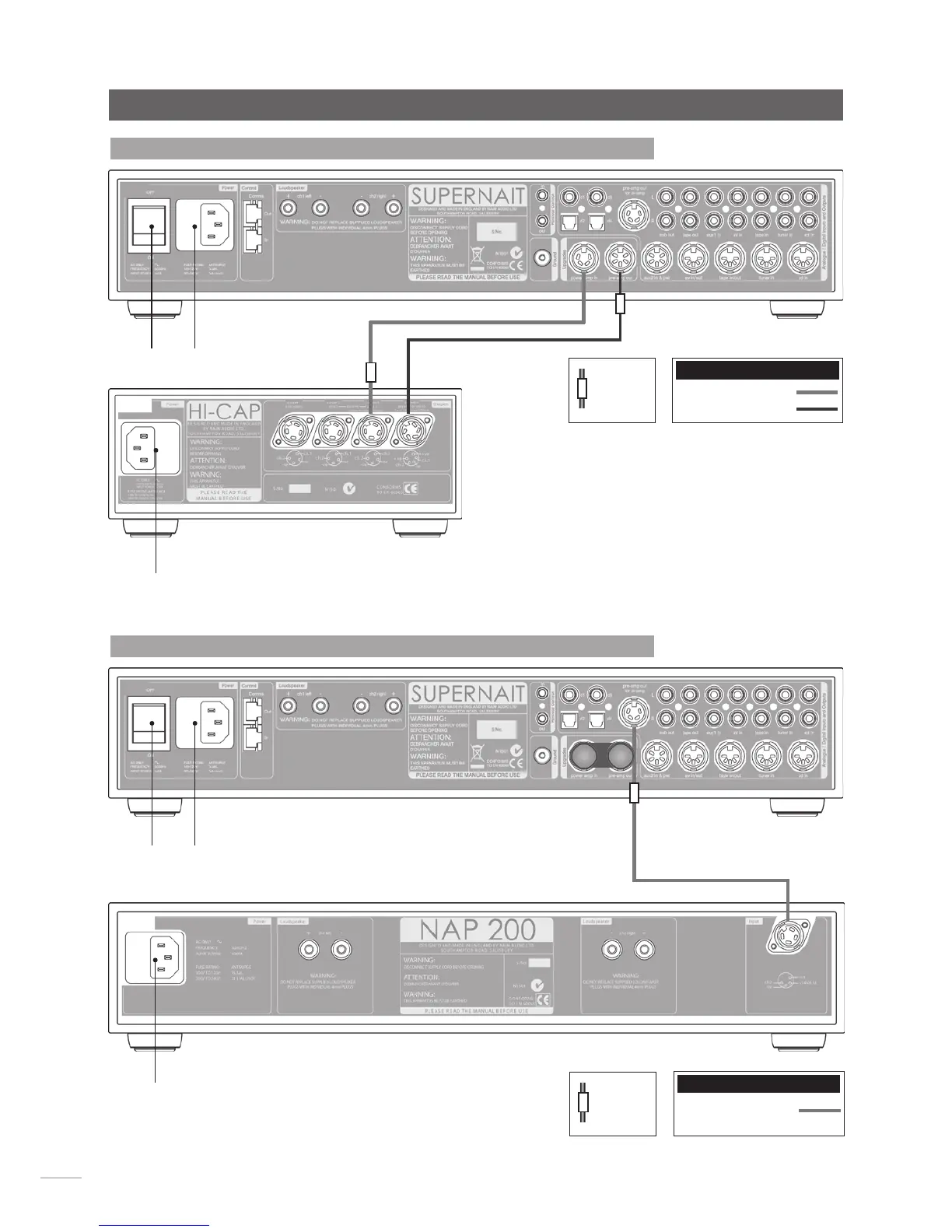

20.3 SUPERNAIT Connected to Hi-Cap Power Supply
mains input
and fuse
20.4 SUPERNAIT Connected to NAP 200 Power Amplifier
mains input
and fuse
cable
direction
marker
4 to 4 pin DIN
Interconnect Cables
240° 5 to 5 pin DIN
cable
direction
marker
Interconnect Cables
mains
input
and fuse
power
mains
input
and fuse
power
4 to 4 pin DIN
