PRELIMINARY

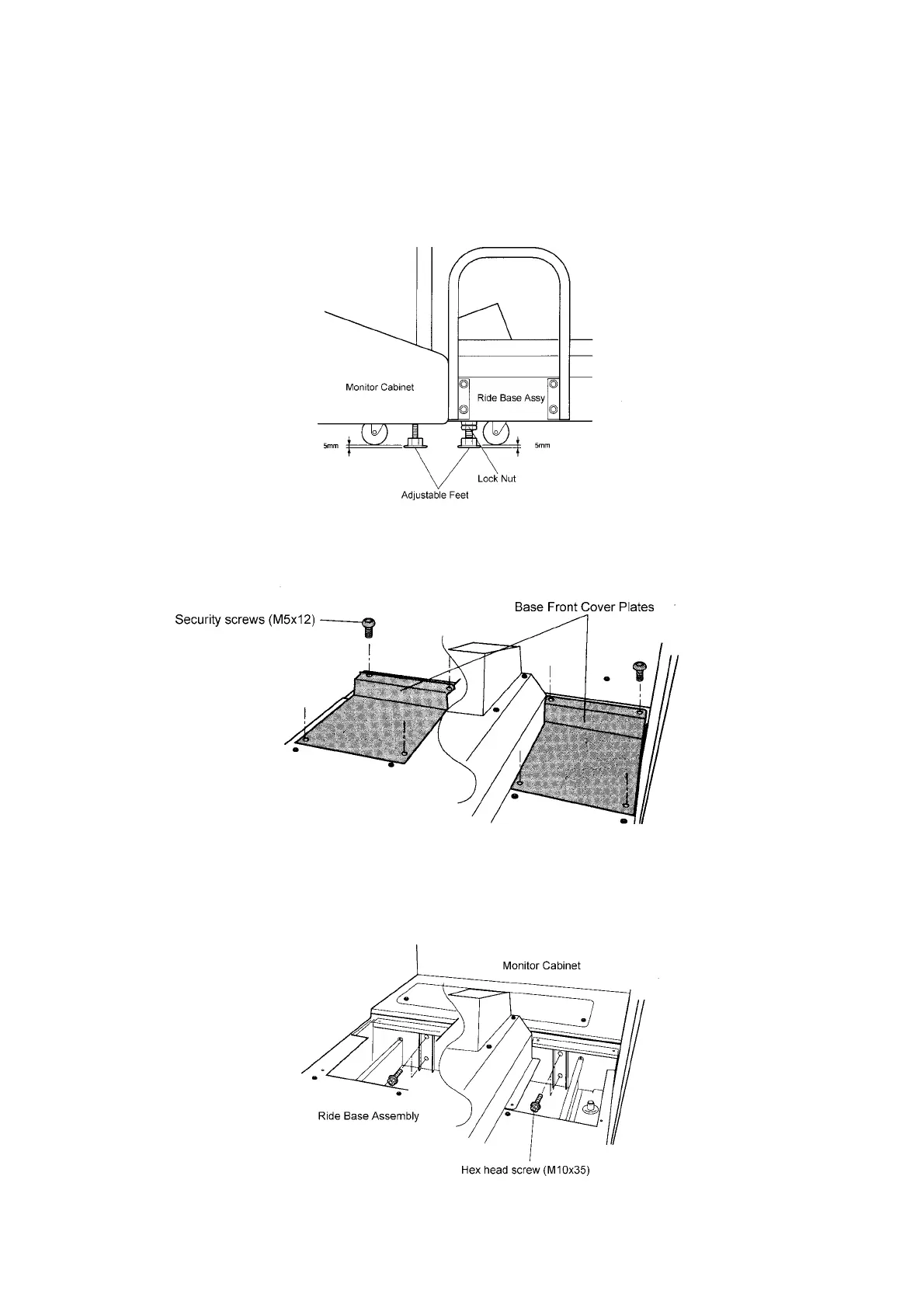

Removing the Ride Assembly
1. Raise the twelve adjustable feet, (4 on the monitor cabinet and 4 on each ride base
assy), (Slacken the lock nuts with a spanner first.)
2. Remove 8off security screws (M5x12) and remove both Base Front Cover Plates.
3. Remove 4off hex head screws (M10x35), with flat and spring washers, retaining the
ride base to the monitor cabinet.
