Namron ZigBee User Manual

Input Clusters
• 0x0000: Basic
• 0x0003: Identify
• 0x0004: Groups
• 0x0005: Scenes
• 0x0006: On/off
• 0x0008: Level Control
• 0x0300: Color Control
• 0x0b05: Diagnostics
Output Clusters
• 0x0019: OTA
12. ZigBee Clusters the device supports are as follows:
13. OTA

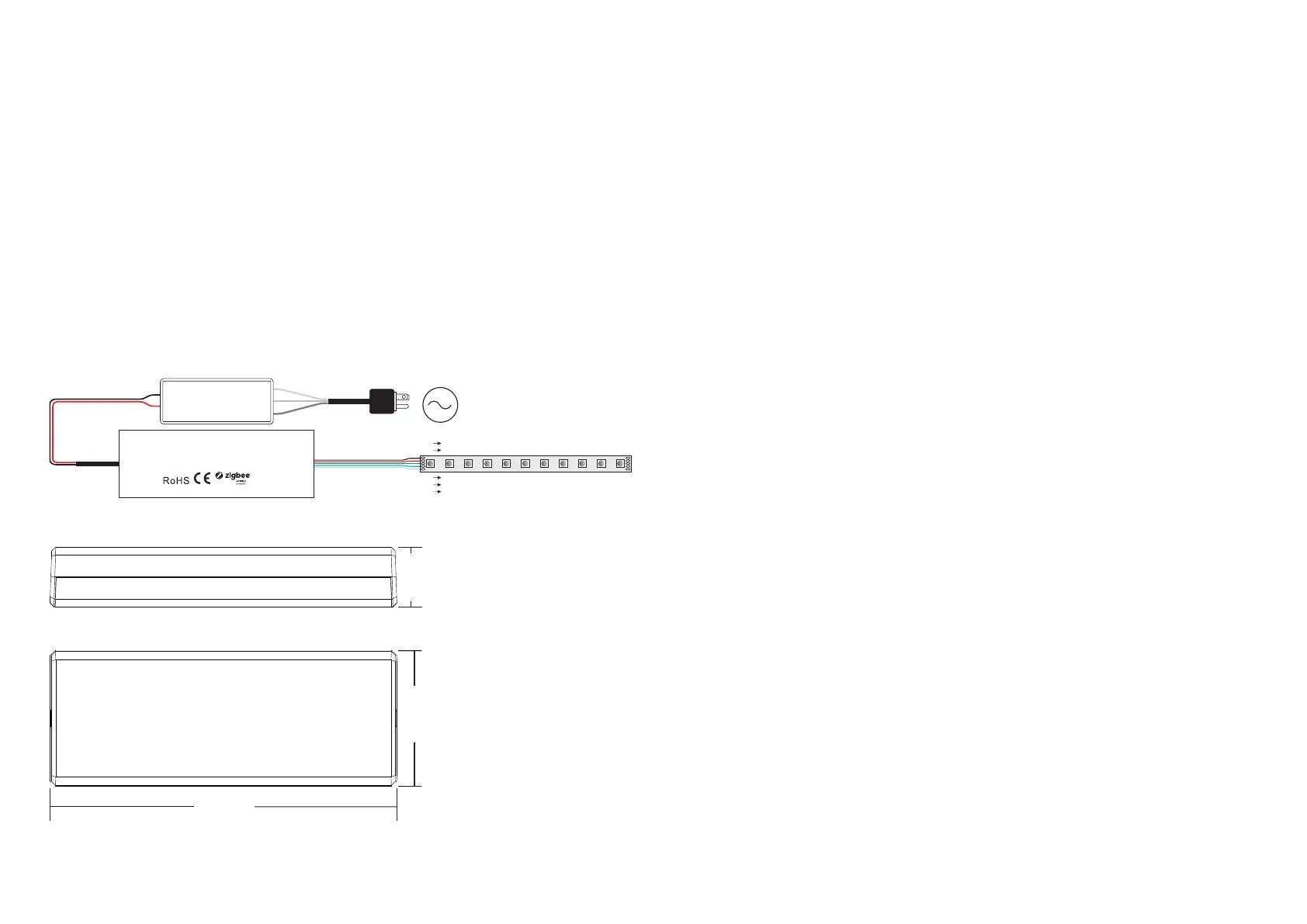

Wiring Diagram
The device supports firmware updating through OTA, and will acquire new firmware from zigbee controller or
hub every 10 minutes automatically.
Step 3: Pair more devices and remotes to the network as you would like, refer to their manuals.
Step 4: Bind the added devices and remotes through Touchlink so that the devices can be controlled by the
remotes, refer to their manuals.
Note: 1) Each added device can link and be controlled by max. 30 added remotes.
2) Each added remote can link and control max. 30 added devices.
Product Dimension
AC Power
50/60Hz
L
N
G
V+
V-
OUTPUT
INPUT
12/24V
CV PSU
Input Voltage:DC 12-24V
Output Current:4x1.5A max.
Max Output Power:72-144W
ZigBee RGBW LED Controller
DC INPUT
Red:V+
Black:V-
LED OUTPUT
Black:LED+
Red:R-
Green:G-
Blue:B-
White:W-
V+ V+
R- R-
G- G-
W- W-
B- B-
87 mm
34 mm
15 mm
Importer:
Namron AS
Nedre kalbakkvei 88B
1081 Olso
Norway
Made in China

Namron ZigBee Specifications

General

Frequency	2.4 GHz
Range	Up to 30m indoors
Compatibility	ZigBee 3.0 certified devices
Certifications	CE
Protocol	ZigBee
