Step 3: Mount Expansion Panels
Nanoleaf Skylight
|
Page 11

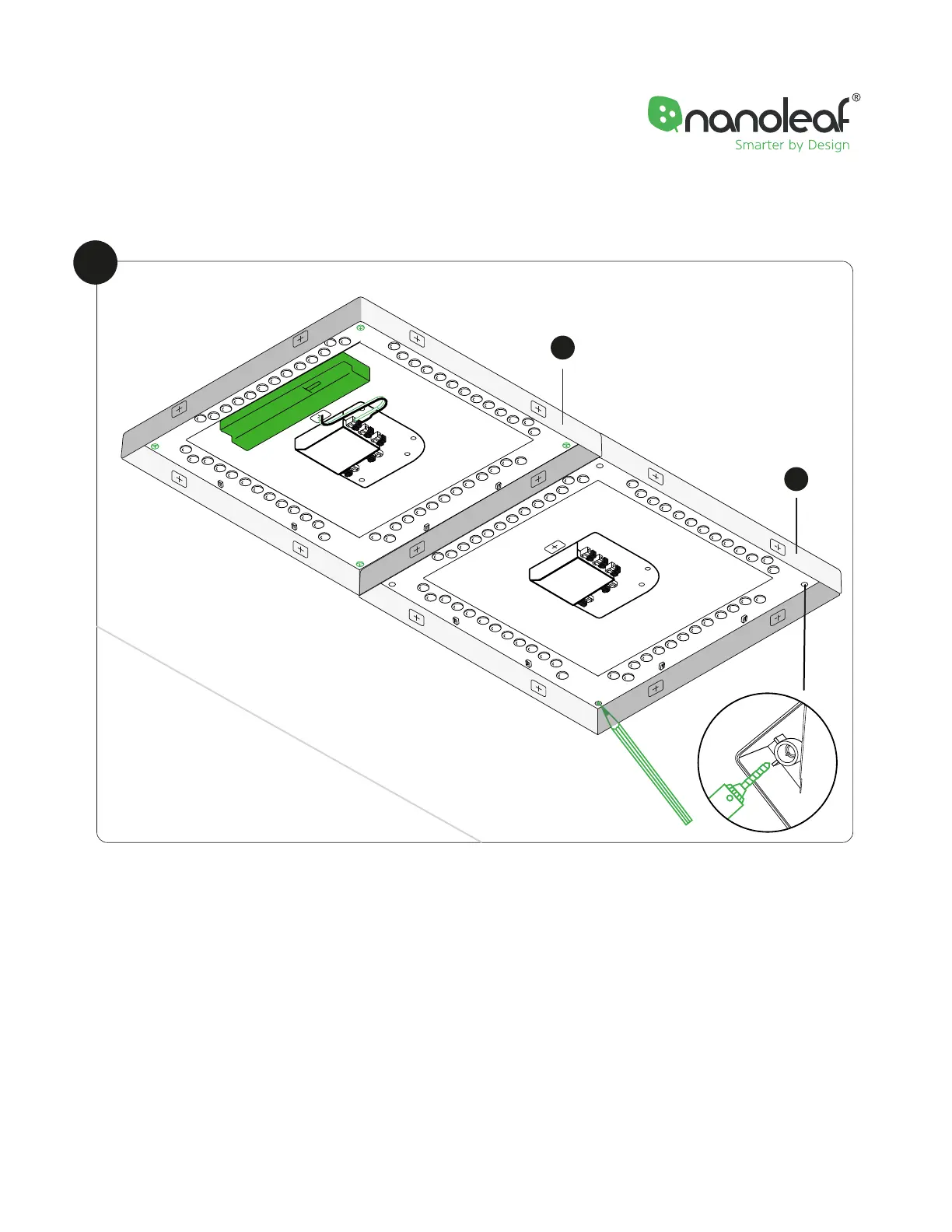

1. Add an Expansion Panel (B) and position it next to the Main Controller Panel (A).
2. Remove the knockout holes on all four corners, hold it against the ceiling and mark each screw holes with a
pencil.
3. For each Expansion Panel (B), repeat the steps for mounting found on Page 9.
A. Drywall Anchors (F)
I. Screw in the four Drywall Anchors (F) to the four spots you previously marked, OR
B. Plaster Anchors (G)
I. Drill a hole of 6mm (OD) then drive the Mounting Screw into the Plaster Anchor.
1
B
A
