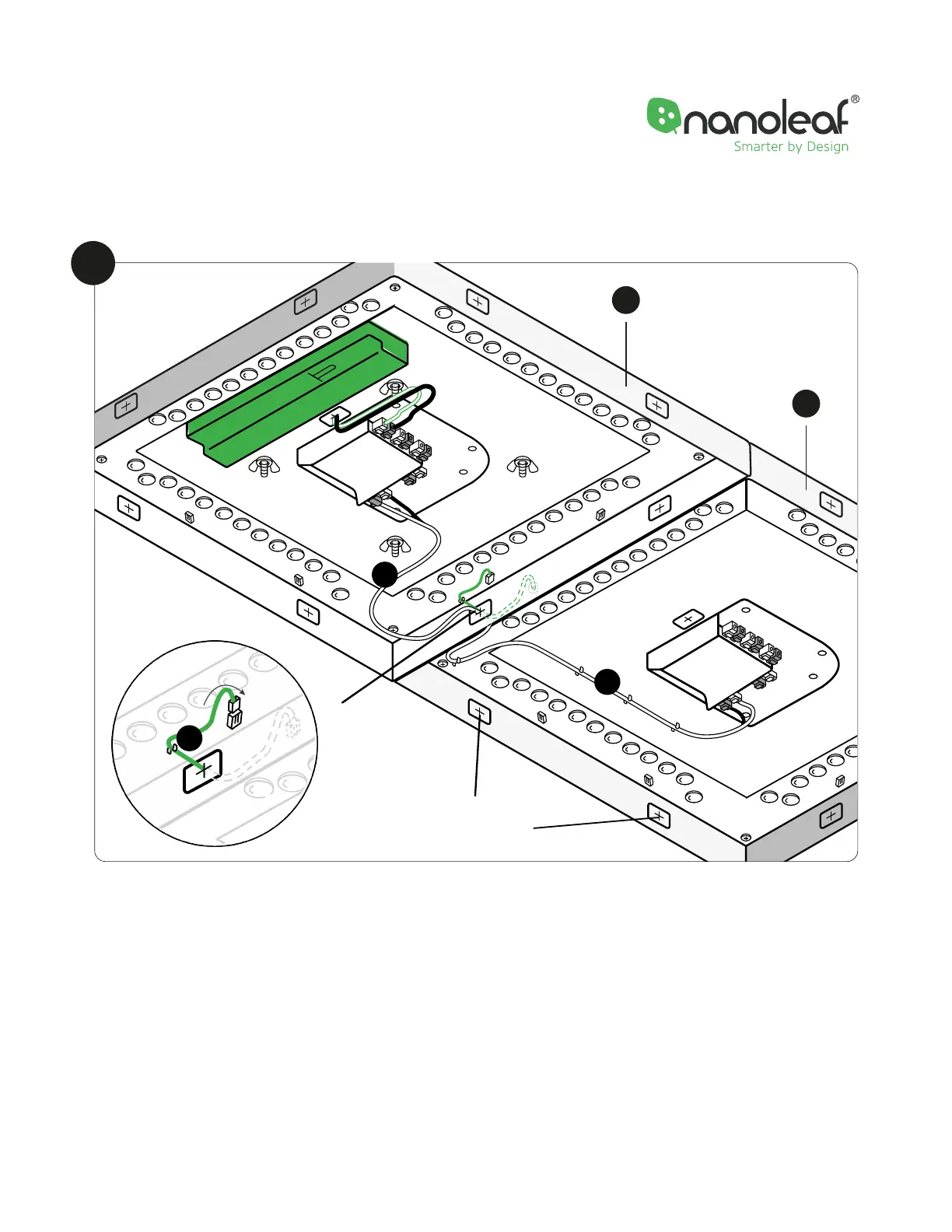

1. Thread the wires through the Grommet Cover to connect the Communication Linker (J) from the Main Controller
Panel (A) to the Expansion Panel (B) through the linker slot.
2. Attach the Power Wires (K) to the socket closest to the next expansion panel. Follow the embossed line and wire
through the opening to the next panel where the Communication Linker is attached.
3. Repeat this step for additional panels you add.
Nanoleaf Skylight
|
Page 12
Step 4: Connect the Wires
1
J
Grommet covers
K
K
B
A
K
J
