Nanoleaf Skylight - Step 2: Connect Electrical Wiring

Nanoleaf Skylight
|
Page 10
Step 2: Connect Electrical Wiring

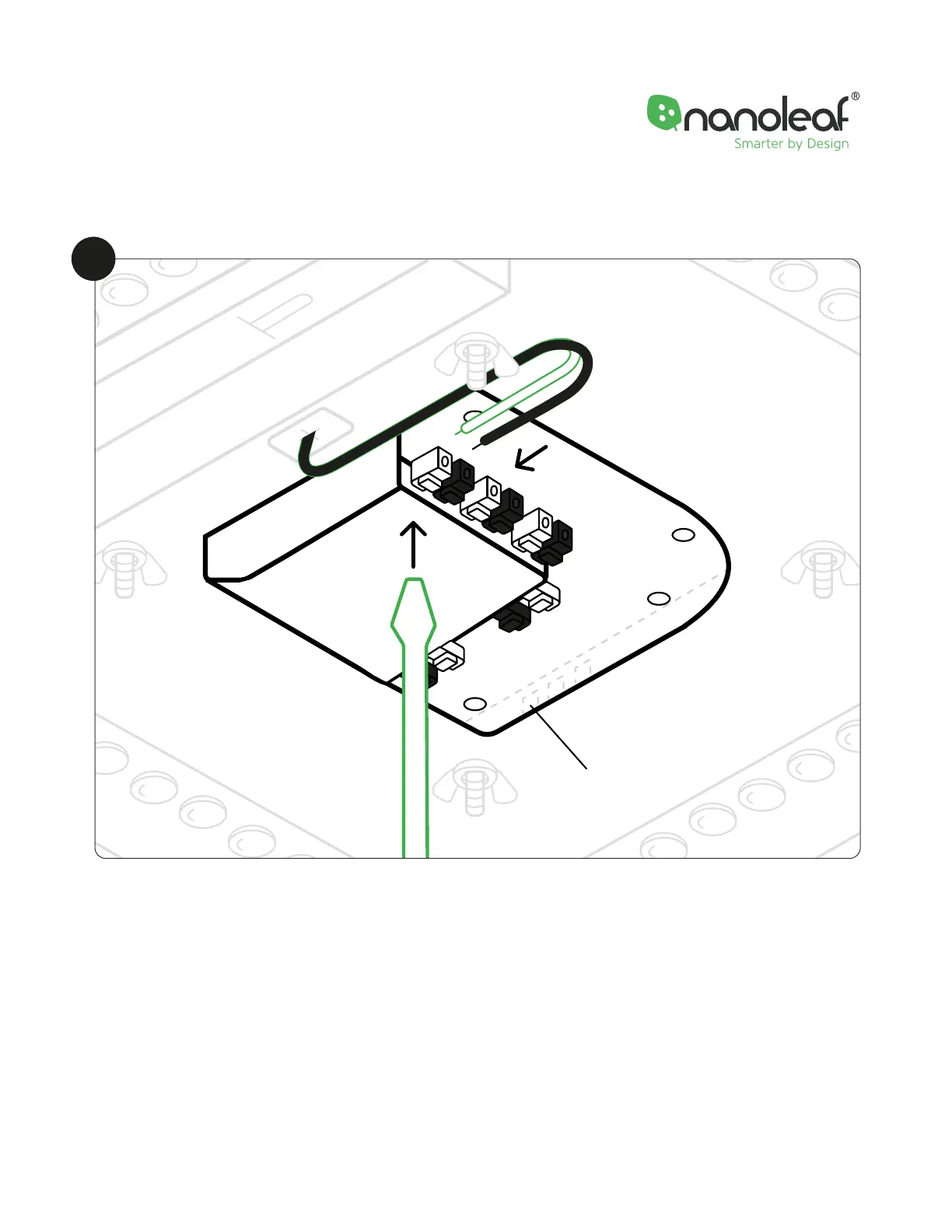

1. Insert the ceiling wires into any of the slots on the terminal block. Use your finger or a screwdriver to push the
clamps when inserting. Make sure the wires are secured in place such that it cannot be pulled out.
A. Black = Live (L)
B. White = Neutral (N)
2. Remove any terminal block knockout holes as needed.
L
N
Black = Live (L)
White = Neutral (N)
Terminal block
knockout holes
1
