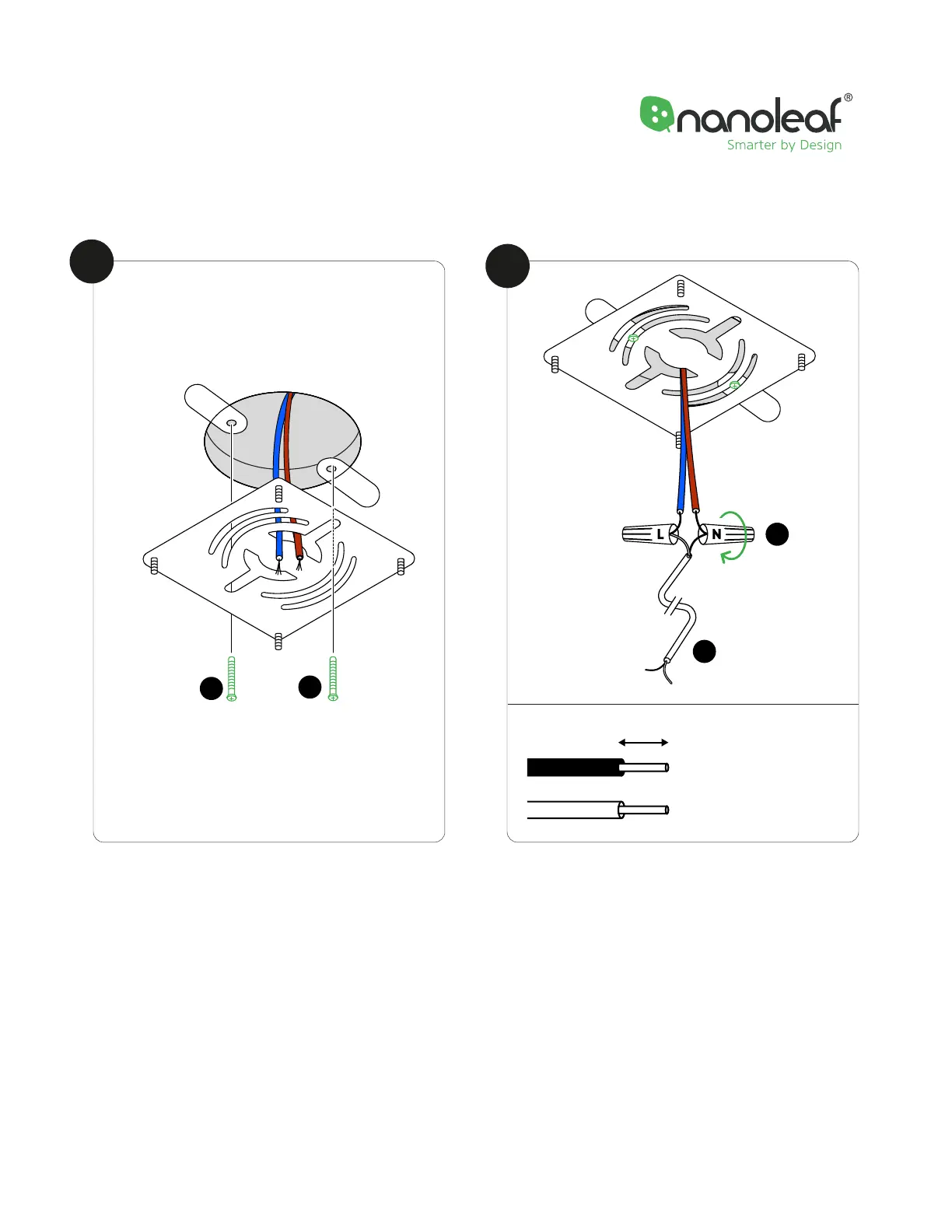

1. If mounting with the Ceiling Plate, ensure that
the wires are positioned through the hole of the
plate with a suitable length visible.
2. Fasten the Ceiling Plate so that it is parallel to
your desired panel alignment.
1. The Main Controller Power Wires (L) attached to
the Main Controller Panel (A) can be connected
with junction box wires using the included
Binding Posts (H).
A. Black = Live
B. White = Neutral
2. Make sure the wires are secure and connected to
the corresponding wires.
Black = Live
18AWG Input Wire
6-8 mm
White = Neutral
18AWG Input Wire
4
5
Nanoleaf Skylight
|
Page 6
Step 1: Mount the Main Controller Panel (cont.)
D
H
L
To Next Page
