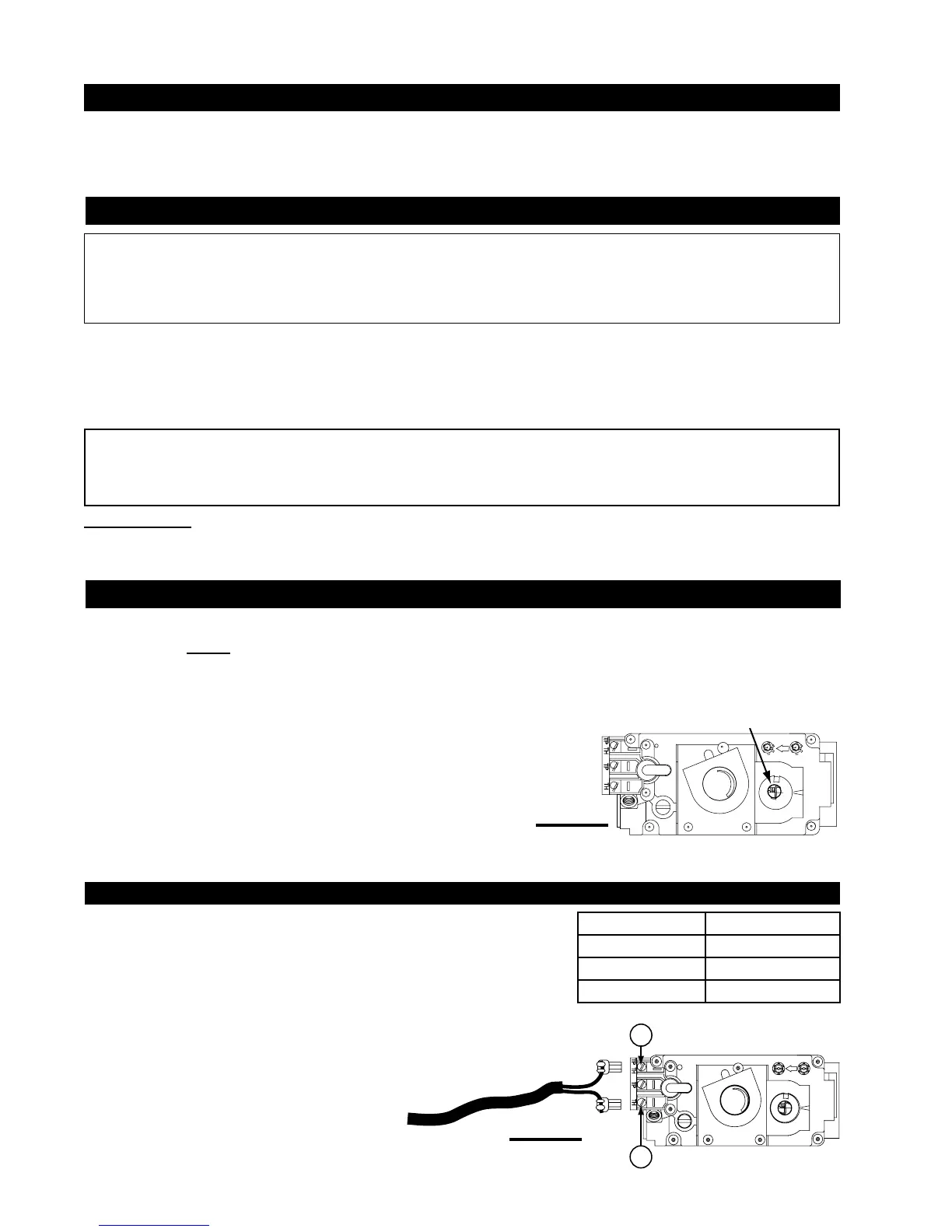

22
W415-0210 / R / 02.27.08
FIGURE 42
GAS INSTALLATION
This Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit. The fi replace is
equipped with two 1/4" diameter holes located in the front left and right corners of the base. For mobile home installations,
the fi replace must be fastened in place. Use #10 hex head screws, inserted through the holes in the base to secure. Always
turn off the pilot and the fuel supply at the source, prior to moving the mobile home. After moving the mobile home and prior
to lighting the fi replace, ensure that the logs are positioned correctly.
MOBILE HOME INSTALLATION
Proceed once the vent installation is complete.
NOTE: All gas connections must be contained within the fi replace when complete.
1. Move the fi replace into position and secure to the fl oor through the 1/4" holes located at either side of the base.
2. The fi replace is designed to accept 3/8" gas supply line. The fi replace is equipped with a 3/8" manual shut-off valve.
3. Connect the gas supply in accordance to local codes. In the absence thereof,
install according to the National Installation Code.
4. When fl exing any gas line, support the gas valve so that the lines are not bent
or kinked.
5. Check for gas leaks by brushing on a soap and water solution.
DO NOT USE OPEN FLAME.
Purge all gas lines with the glass door open. Assure that a continuous gas fl ow is at the burner before closing the
door.
This appliance is certifi ed to be installed as an OEM (Original Equipment Manufacturer) installation in a manufactured
home or mobile home and must be installed in accordance with the manufacturer’s instructions and the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard,
CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas indicated on the rating plate.
A conversion kit is supplied with the mobile home appliance.
This appliance is certifi ed to be installed in an aftermarket permanently located, manufactured (mobile) home, where not
prohibited by local codes.
This fi replace is only for use with the type of gas indicated on the rating plate. This fi replace is not convertible for use with
other gases, unless a certifi ed kit is used.
For ease of accessibility, an optional remote wall switch may be installed in a
convenient location. A 20ft length of millivolt wire is connected to the gas valve
and wall switch. However, if a greater length is required route 2-strand (solid
core) millivolt wire through the electrical hole located at the bottom left side of
the unit. The recommended maximum lead length depends on wire size:
Attach the two leads to terminals 1 and 3 located on the gas valve.
Do not connect either the wall switch, thermostat or gas valve directly to
110 volt electricity.
OPTIONAL WALL SWITCH INSTALLATION
Conversion Kits
The mobile home appliance is fi eld convertible between Natural Gas (NG) and Propane (LP).
To convert from one gas to another consult your Napoleon® dealer/distributor.
MANUAL SHUT-OFF VALVE
P
I
P
I
L
O
T
N
O
L
O
T
H
I
L
O
F
F
O
WIRE SIZE LENGTH
14 Gauge 100 Feet
16 Gauge 60 Feet
18 Gauge 40 Feet
P
I
P
I
L
O
T
3
1
N
O
L
O
T
H
I
L
O
F
F
O
GD36 RESTRICTING VERTICAL VENTS
Vertical terminations running longer than 15 feet may display a very active fl ame. If this appearance is not desirable, the
vent exit must be restricted using restrictor plate kit, RP-KT.
This reduces the velocity of the exhaust gasses, slowing down the fl ame pattern and creating a more traditional appearance.
Specifi c instructions are included with the kit.
FIGURE 43
