INPUT
MODEL FUEL MAX. INPUT Btu/Hr
UPTN1 Propane Gas 50, 000

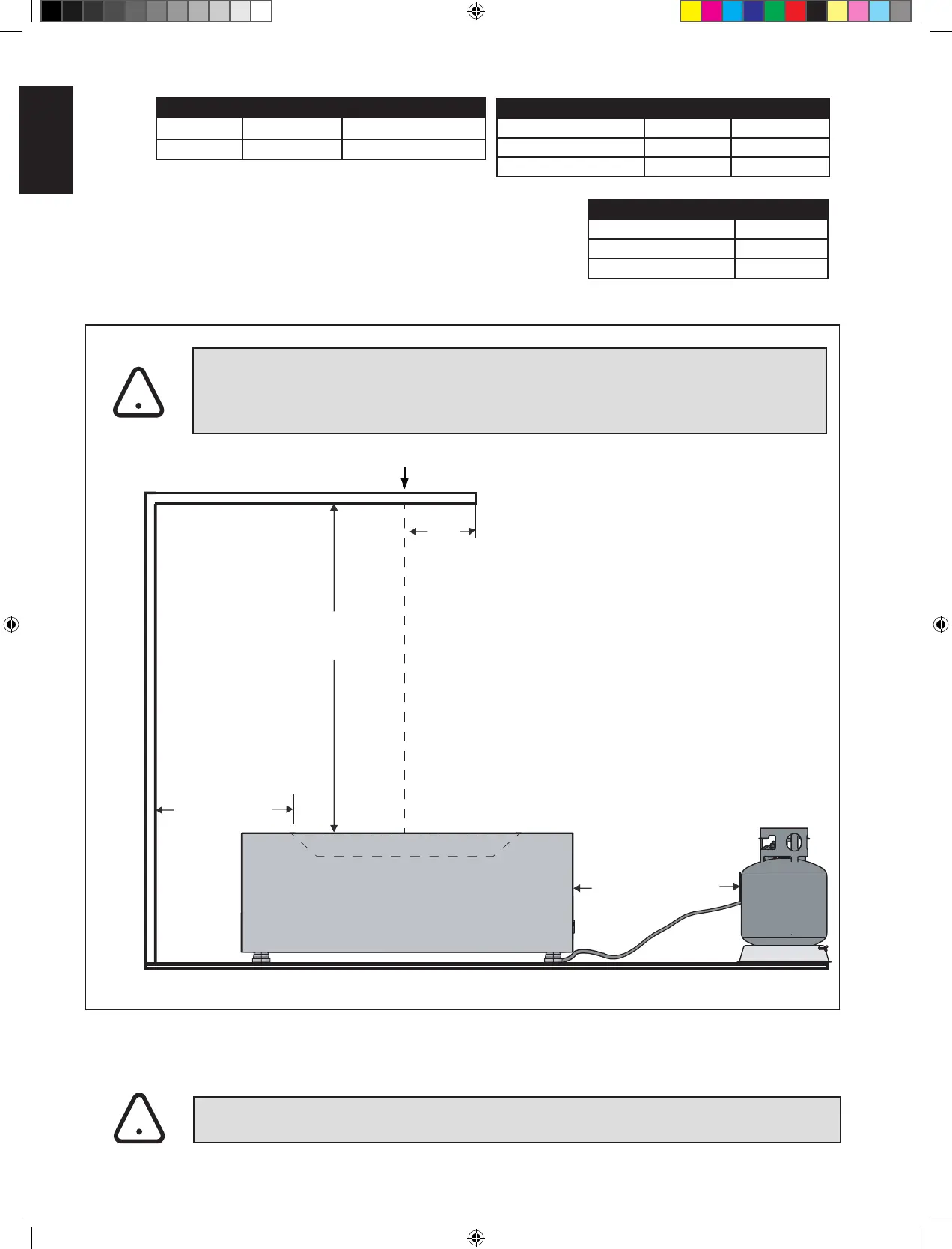

MINIMUM CLEARANCE TO COMBUSTIBLES
INCHES MM
Side Walls 48 1220
Top of unit to ceiling 72 1830
CENTRE OF PATIOFLAME
48”
(1220 mm)
24”
(610mm)
MAXIMUM
OVERHANG
THE TABLE IS APPROVED FOR USE ON COMBUSTIBLE FLOORS.
!
72”
(1830mm)
EDGE OF
BURNER
WARNING! Never set an LP gas cylinder on top of the appliance enclosure. An LP gas cylinder
connected for use must be placed a minimum of 60” away from the appliance. Properly locate the
gas hose out of pathways where people may trip, and where the it will not be subject to accidental
damage.
!
WARNING! It is important when selecng a locaon for your appliance to ensure clearances to
adjacent combusbles are met.
GAS INLET PRESSURE RANGE
PROPANE
Minimum 8" W.C.
Maximum 13” W.C.
60”
(1524 mm)
