Narada 12NDT26 - Constant Current and Constant Power Data

Operation manual for Acme series V4.2
- 10 -

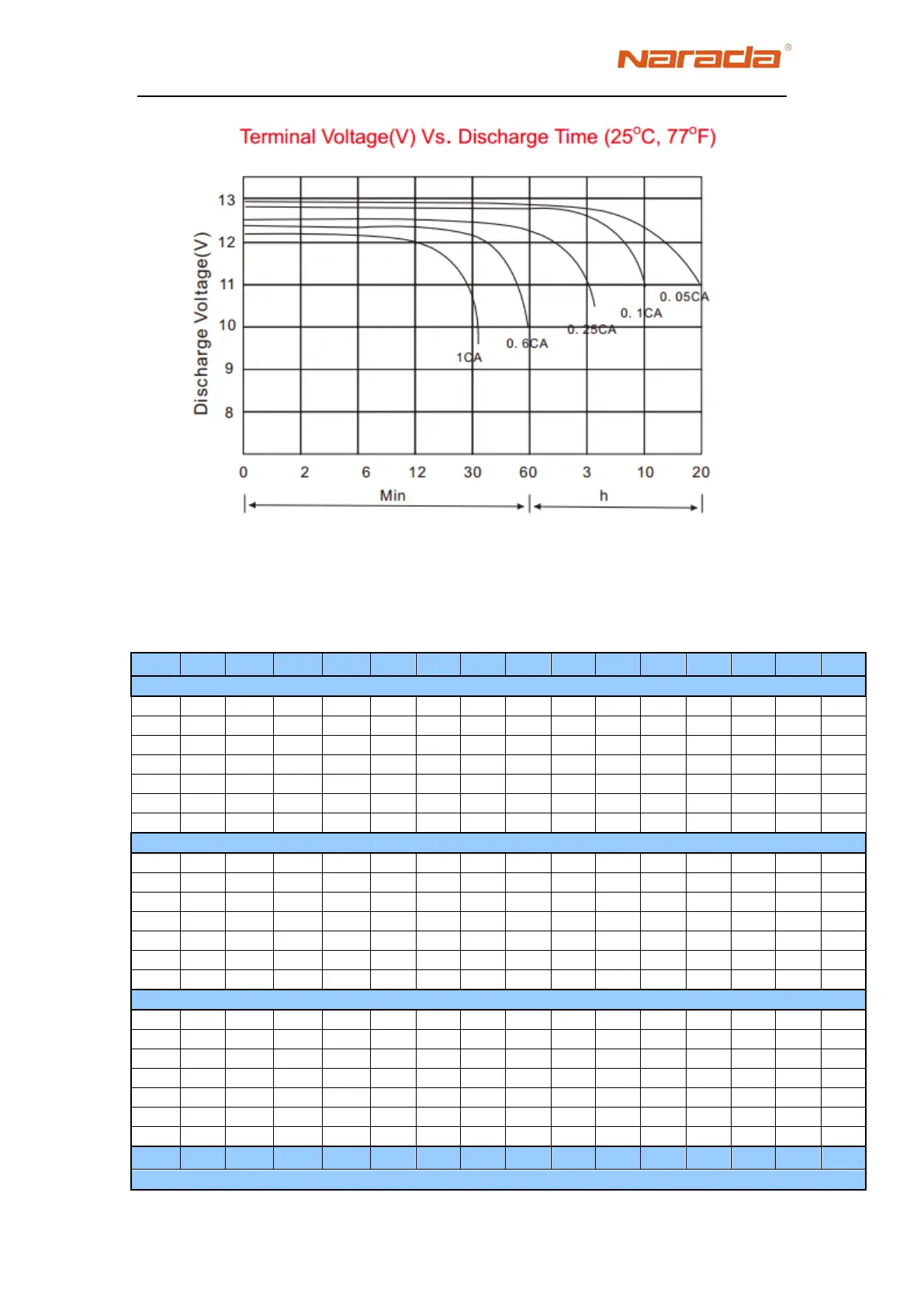

Fig.2-1. Discharge Curves at different current
2. Constant current and constant power data sheet
Table 2-1 constant current discharge data (Amperes, 25°C )
End
Voltage
5min
15min
30min
45min
1h
2h
3h
4h
5h
6h
8h
10h
12h
20h
24h
12NDT26
1.60V
97.8
52.5
31.8
23.0
18.6
10.7
7.75
6.08
5.14
4.41
3.39
2.68
2.35
1.47
1.23
1.67V
91.5
50.6
31.3
22.9
18.5
10.6
7.59
6.03
5.11
4.37
3.35
2.64
2.35
1.46
1.22
1.70V
91.0
49.8
30.8
22.7
18.4
10.6
7.59
6.03
5.03
4.34
3.31
2.64
2.32
1.46
1.22
1.75V
83.2
48.2
30.5
22.6
18.1
10.3
7.49
5.93
5.00
4.31
3.29
2.63
2.32
1.45
1.22
1.80V
74.9
44.9
29.2
21.6
17.6
10.2
7.44
5.93
4.90
4.22
3.25
2.60
2.30
1.44
1.21
1.83V
71.2
41.2
28.7
20.9
16.9
10.1
7.18
5.64
4.74
4.07
3.21
2.51
2.19
1.44
1.20
1.85V
67.1
39.9
26.7
20.1
16.4
9.70
6.97
5.56
4.62
3.98
3.11
2.49
2.16
1.40
1.19
12NDF50
1.60V
188
101
61.2
44.3
35.8
20.6
14.9
11.7
9.88
8.49
6.51
5.36
4.52
2.83
2.36
1.67V
176
97.4
60.1
44.0
35.6
20.4
14.6
11.6
9.83
8.41
6.47
5.28
4.51
2.80
2.34
1.70V
175
95.7
59.3
43.7
35.4
20.3
14.6
11.6
9.67
8.35
6.44
5.28
4.46
2.80
2.34
1.75V
160
92.7
58.7
43.4
34.8
19.8
14.4
11.4
9.62
8.28
6.37
5.25
4.46
2.79
2.34
1.80V
144
86.4
56.2
41.6
33.9
19.6
14.3
11.4
9.42
8.11
6.33
5.20
4.43
2.76
2.33
1.83V
137
79.2
55.2
40.2
32.5
19.4
13.8
10.9
9.11
7.83
6.18
5.01
4.21
2.76
2.30
1.85V
129
76.7
51.3
38.6
31.5
18.6
13.4
10.7
8.89
7.66
5.98
4.97
4.16
2.70
2.28
12NDF85
1.60V
307
165
100
72.5
58.6
33.6
24.4
19.1
16.2
13.9
10.6
8.76
7.38
4.62
3.86
1.67V
288
159
98.3
71.9
58.2
33.4
23.9
19.0
16.1
13.7
10.6
8.67
7.37
4.58
3.83
1.70V
286
156
96.9
71.4
57.8
33.2
23.8
18.9
15.8
13.6
10.5
8.63
7.30
4.57
3.83
1.75V
262
151
96.0
70.9
57.0
32.3
23.5
18.7
15.7
13.5
10.4
8.58
7.29
4.56
3.82
1.80V
235
141
91.9
68.0
55.5
32.0
23.4
18.6
15.4
13.3
10.4
8.50
7.23
4.52
3.82
1.83V
224
129
90.2
65.7
53.1
31.6
22.6
17.8
14.9
12.8
10.1
8.18
6.88
4.51
3.75
1.85V
210
125
83.8
63.1
51.4
30.5
22.0
17.6
14.5
12.5
9.78
8.12
6.80
4.42
3.72
End
Voltage
5min
15min
30min
45min
1h
2h
3h
4h
5h
6h
8h
10h
12h
20h
24h
12NDF100
