3. Charge Performance Curve

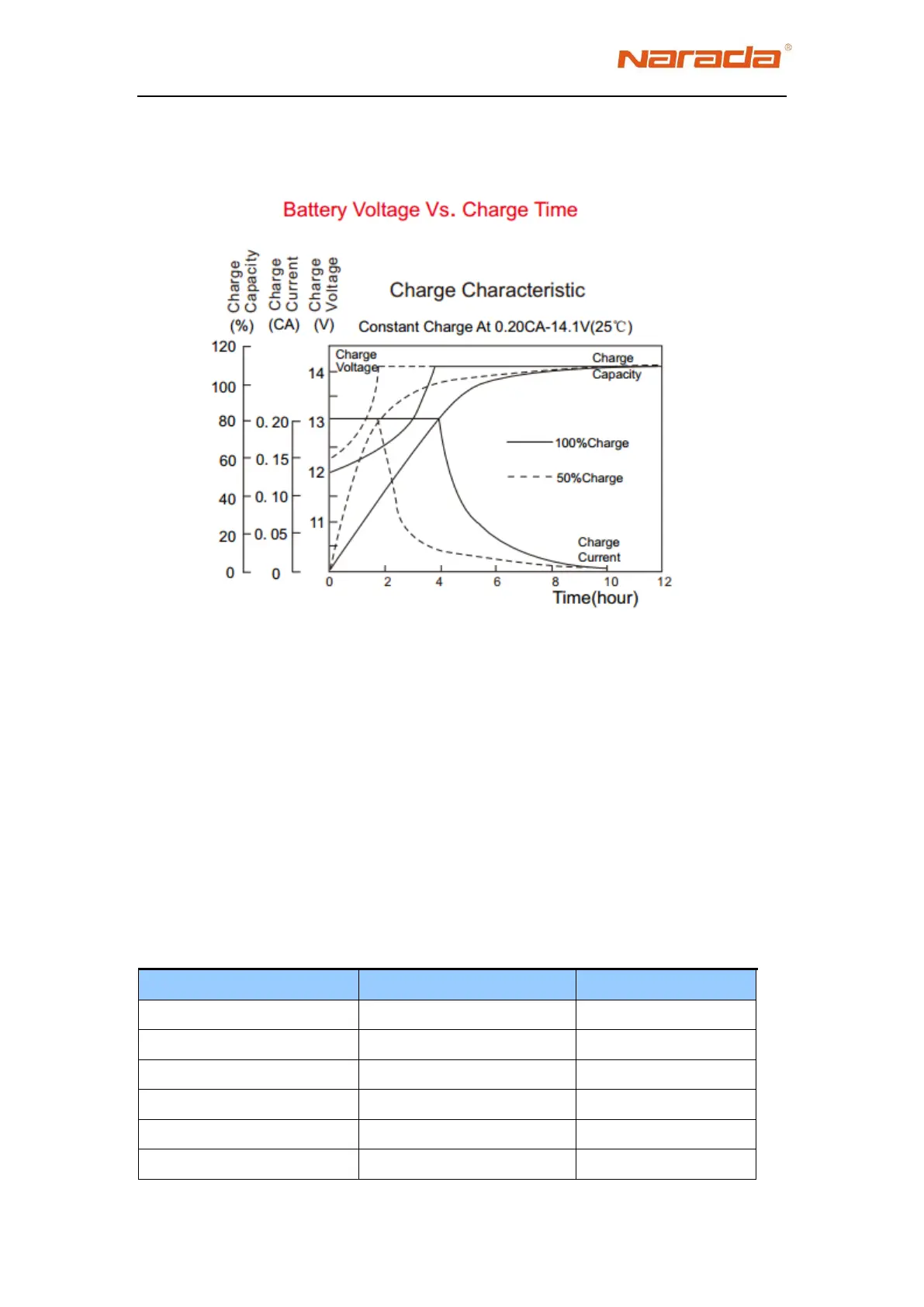

Fig.2-2 is the battery voltage vs charge time curves at 25°C
Fig.2-2. Charge Curves at 25°C
4. Internal resistance and short circuit current
The internal resistance of the battery is a dynamic nonlinear parameter that is
continuously changed along with the temperature and discharge state. The internal
resistance is the lowest when battery is fully charged. The table 2-4 shows the internal
resistance and short circuit current of Narada battery in fully charged state according
to the IEC60896-21/22 standard.
Table 2-4. Internal resistance and short circuit current (25°C )
Type
Internal resistance (mΩ)
Short circuit current (A)
12NDT26
10.3
1218
12NDF50
8.87
1407
12NDF85
6.47
1864
12NDF100
6.31
1979
12NDF125
5.70
2229
12NDF155
4.27
2906
