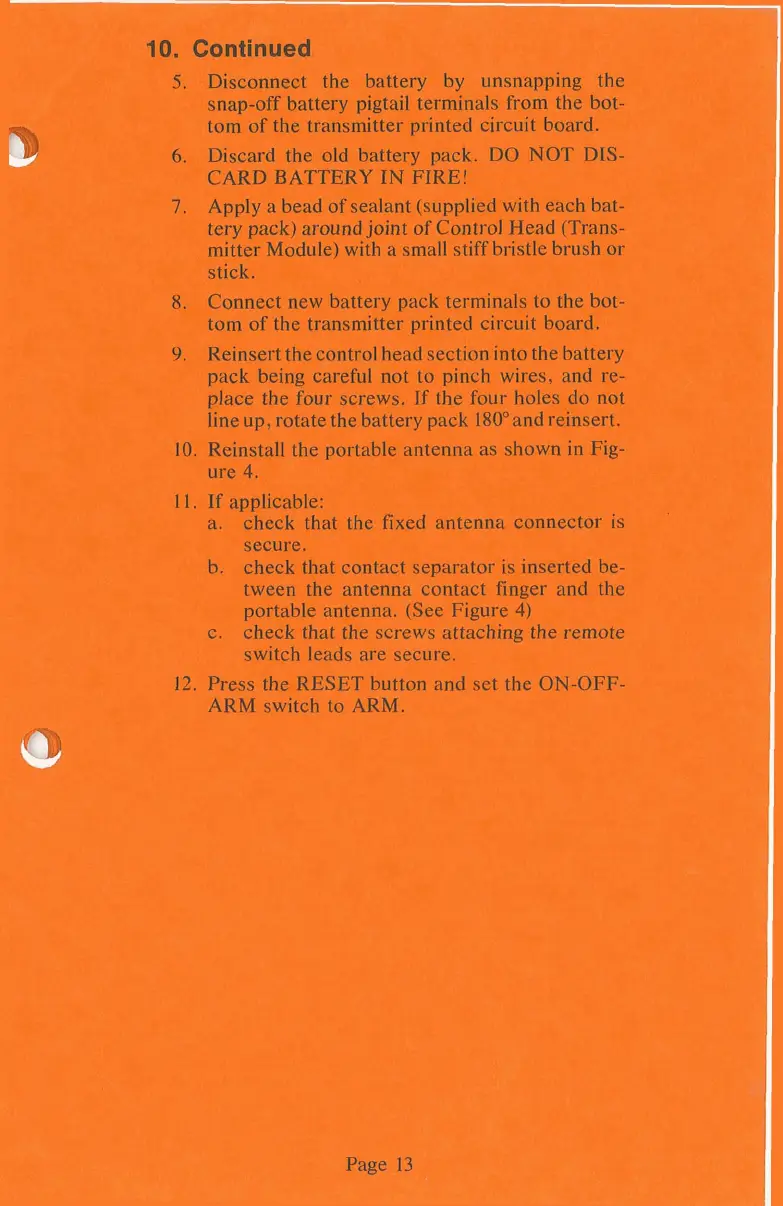

5,

Disconnect

the

battery

by

unsnapping

the

srtap-off

battery

pigtail

terminals

from

the

bot-

tom

of

the

transmittar

printed

circuit board.

6.

Dimd

the

old battery

pack,

DO

NOT

DIS-

CARD

BATTERY

IN

FIRE!

7.

Apply

a

bcad of sealant

(supplied

with each

bat-

tery

pack)

around

joint

of Control

Head

(Trans-

mitter Module) with

a

smd

stiff

bristle brush or

stick.

8.

Connect new battery

pack

terminals to the bot-

tom

of

the transmitter

printed

circuit board.

'

9.

Reinsert

the control

head

section

into

the

battery

pack

being

careful

not to pinch wires, and

re-

place

the

four

screws.

If

tY1.e

four

holes

do

not

line

up,

rotate

the

battery

pack

18P

and reinsert.

10.

Reinstall

the

portable

antenna as

shown

in

Fig-

ure

4.

1

1.

If

applicable:

a.

check

that the fixed antenna connector is

secure.

b.

oheck

that contact separator

is

inserted

be-

tween

the

antenna contact

finger

and

the

portable antenna.

(See

Figure

4)

c.

check

that

the

screws

attaching

the

remote

switch

leads

are secure.

12.

Press

the

RESET

button

and

set

the

ON-OFF-

ARM

switch to

ARM.
