NARDA SignalShark 3310 - SignalShark 3320 Remote Unit Overview; Front, Rear, and Bottom Panel Connectivity

Slide 6© Narda Safety Test Solutions GmbH www.narda-sts.com

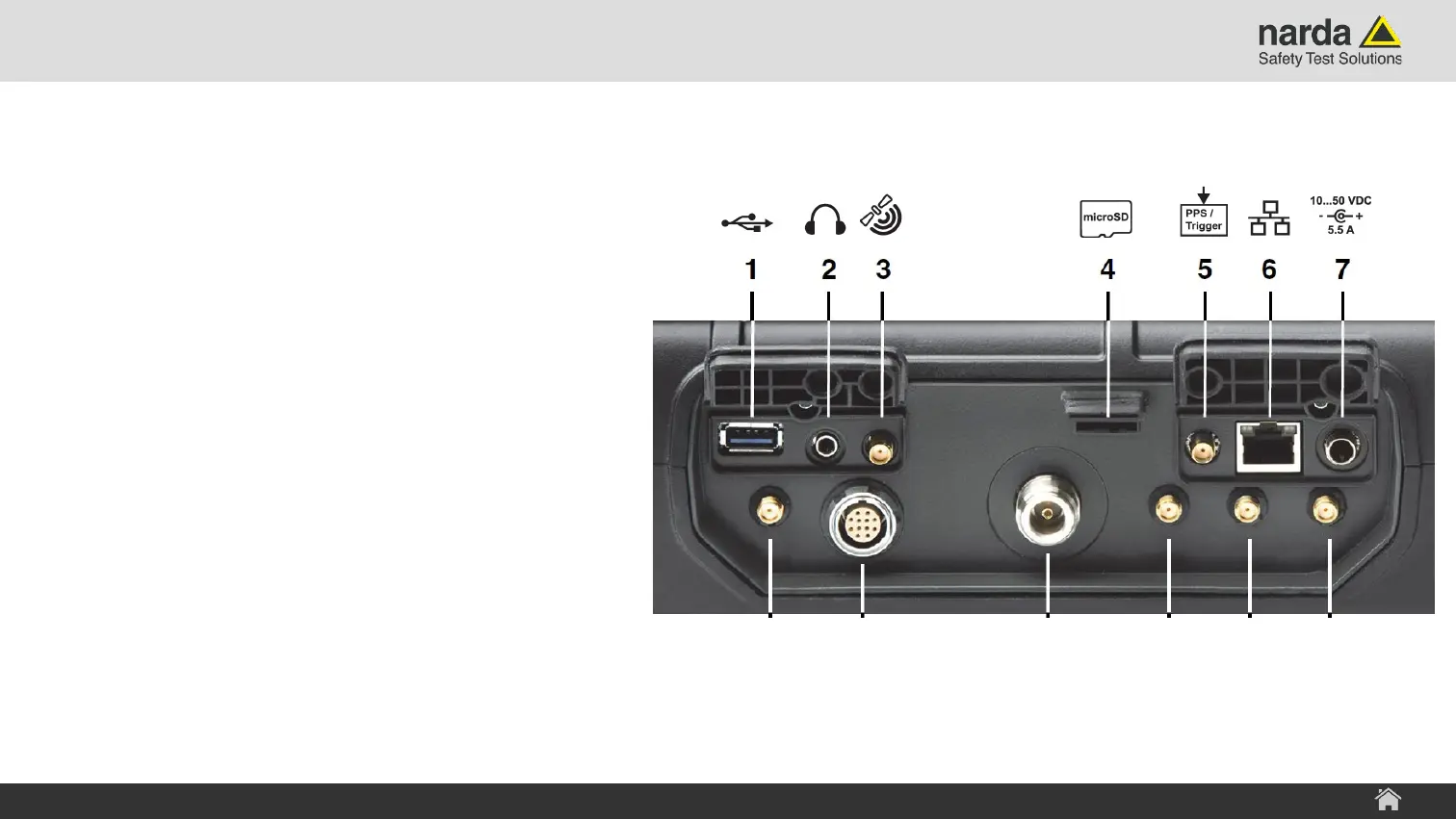

Connector Panel
1) USB 3.0 connection
2) 3.5mm headphone jack
3) External GNSS SMA(f) input, 50 Ohm
› DC voltage for active antenna is supplied
4) Micro SD card slot (microSDXC)
5) PPS/trigger SMA(f) input
6) 1 GigE connector for remote control and
I/Q streaming
7) DC input / charging jack
SignalShark - User Interface Manual
SignalShark 3320 Device Overview
