Slide 7© Narda Safety Test Solutions GmbH www.narda-sts.com

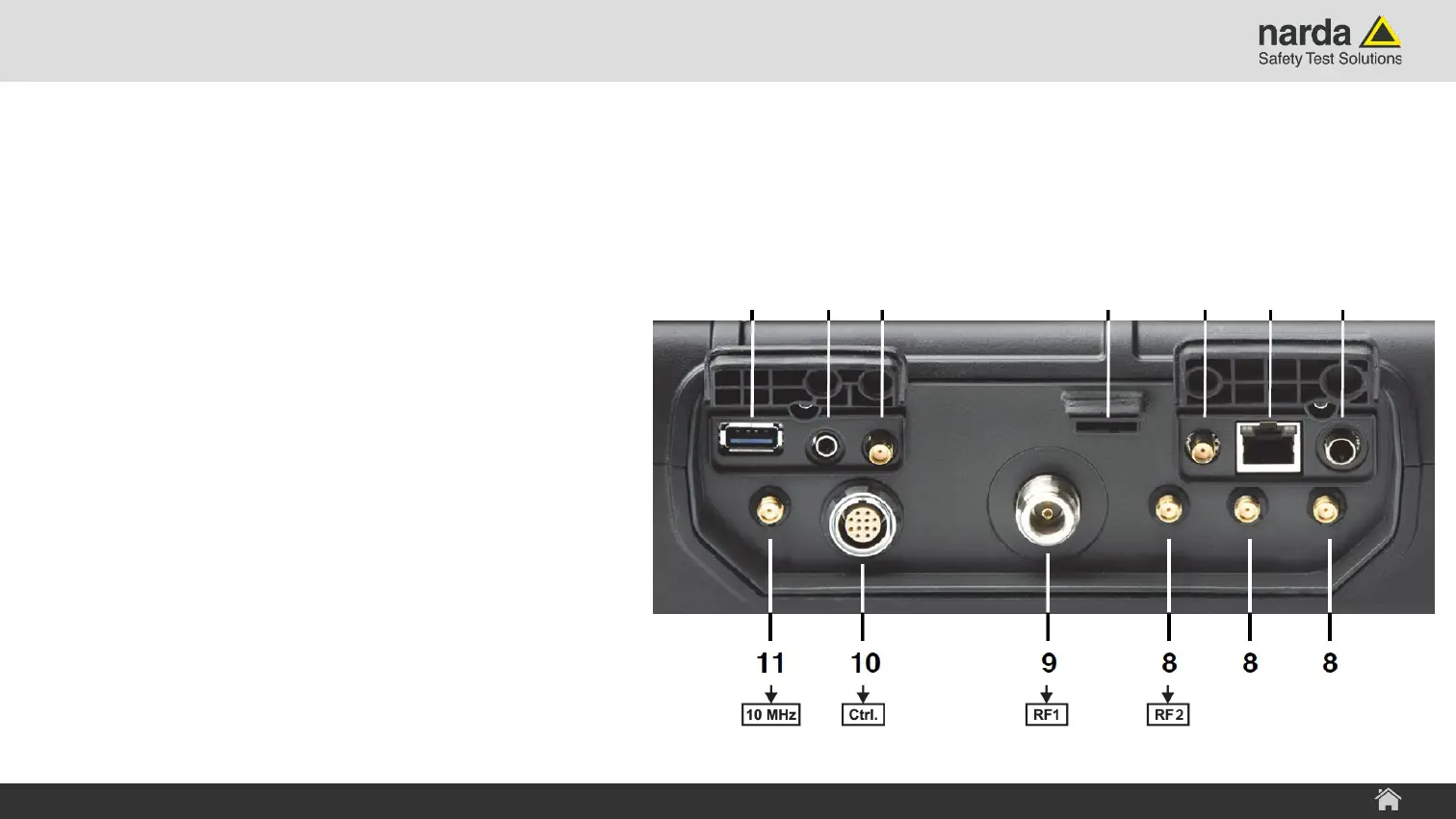

Connector Panel
8) 3 x RF SMA(f) input
9) RF N(f) input for connecting the antenna
10) 12-pin jack for connecting the antenna
control cable
11) 10 MHz Ref SMA(f) input
SignalShark - User Interface Manual
SignalShark 3320 Device Overview
