Appendix A Device-Specific Information
© National Instruments Corporation A-59 M Series User Manual
Digital I/O and Timing I/O
You can access digital I/O and timing I/O signals on the BNC connectors

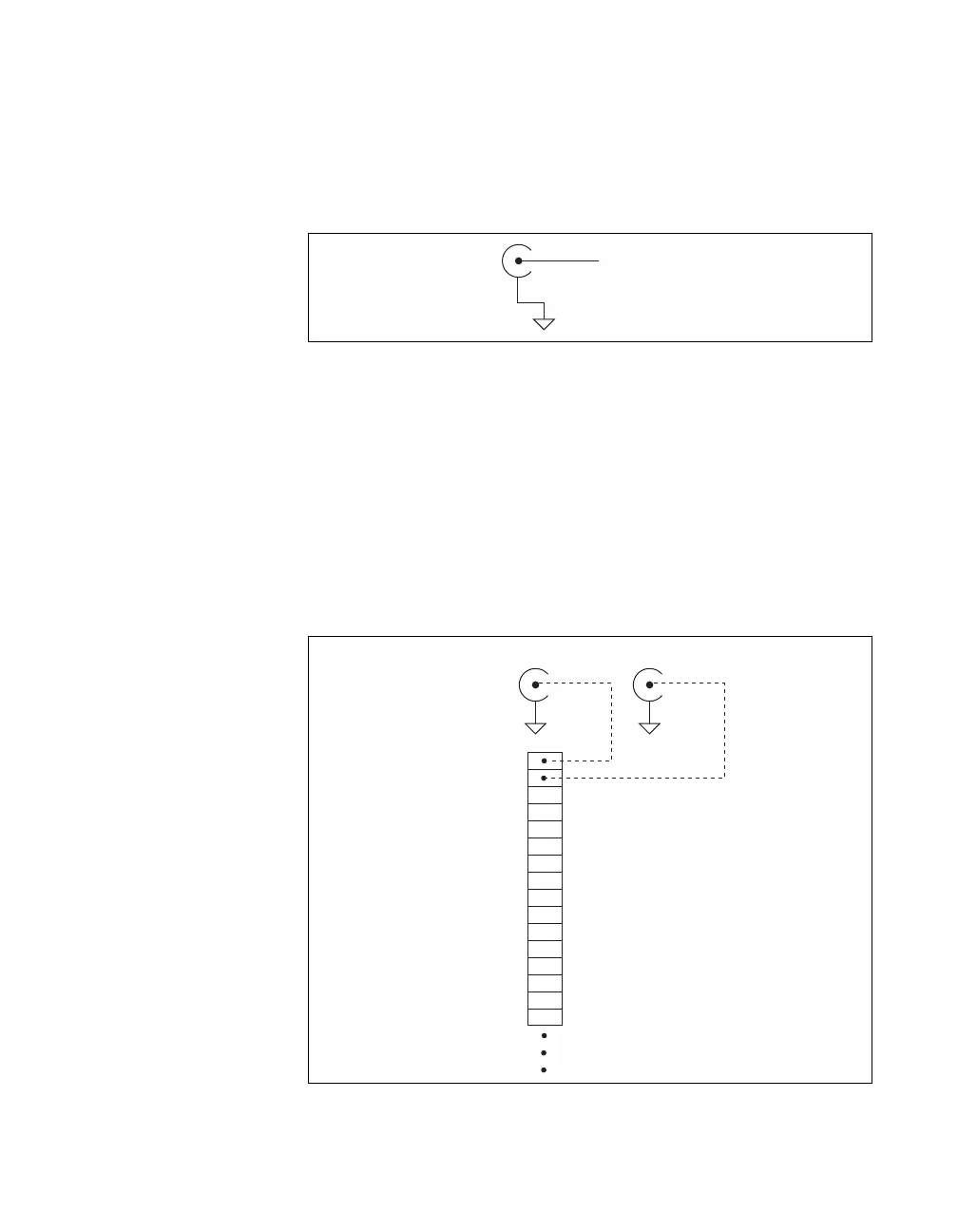

labeled PFI <0..7>/P1.<0..7>. Figure A-24 shows the DIO/TIO circuitry on
the USB-6229 BNC.
Figure A-24. Digital I/O and Timing I/O Circuitry
Refer to the Connecting Digital I/O Signals section of Chapter 6, Digital
I/O, and the Connecting PFI Input Signals section of Chapter 8, PFI, for
more information.
USER 1 and USER 2
The USER 1 and USER 2 BNC connectors allow you to use a BNC
connector for a digital or timing I/O signal of your choice. The USER 1 and
USER 2 BNC connectors are routed (internal to the USB-6229 BNC) to the
USER 1 and USER 2 screw terminals, as shown in Figure A-25.
Figure A-25. USER <1..2> BNC Connections
PFI x /P1.
x
D GND
USER 2 BNC
D GND
USER 1
P0.6
P0.5
P0.4
D GND
P0.3
P0.2
P0.1
P0.0
D GND
+5 V
D GND
USER 2
PFI 8/P2.0
P0.7
D GND
Internal Connection
USER 1 BNC
D GND
Screw
Terminal
Block
