USB-6229 BNC
USB-6229 BNC Pinout

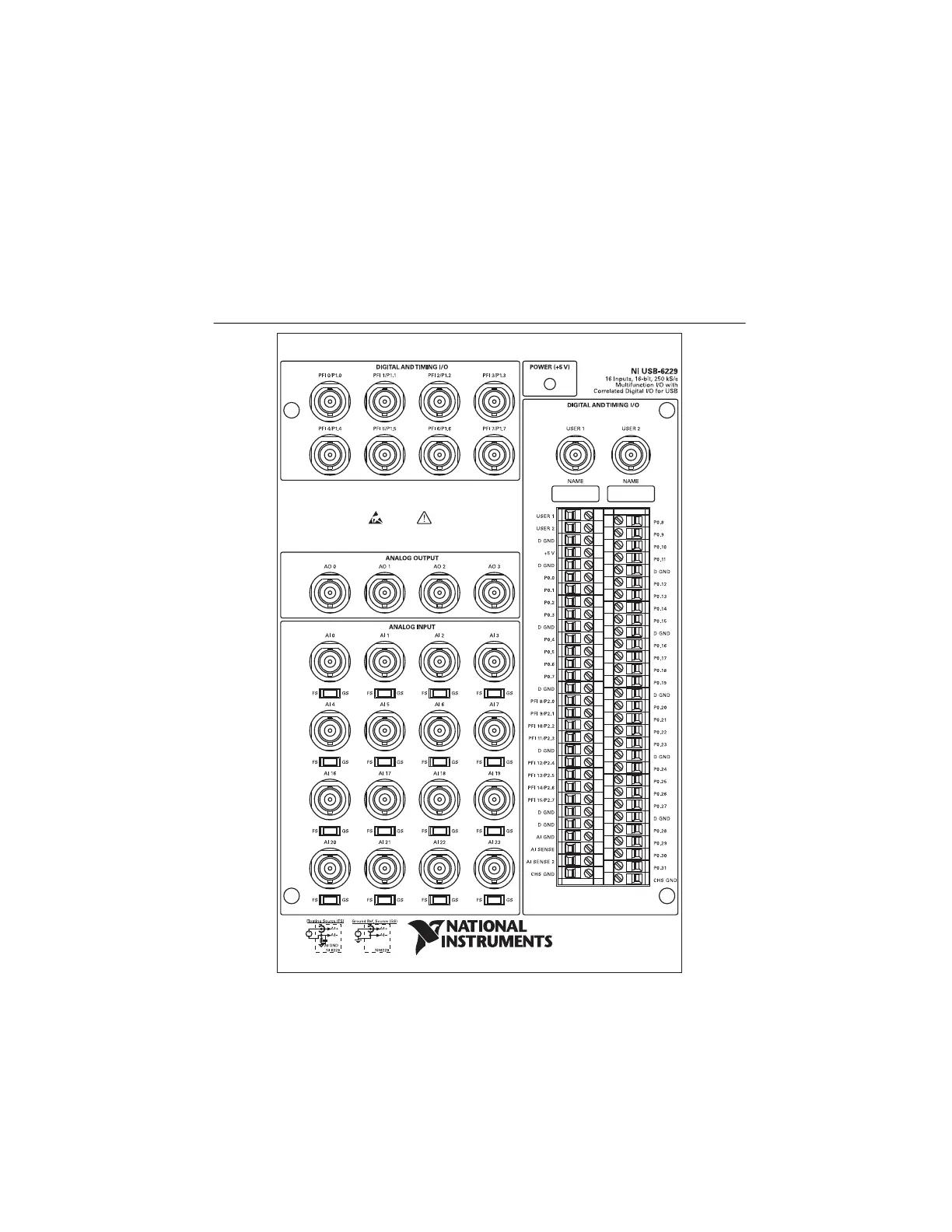

Figure A-12 shows the pinout of the USB-6229 BNC.
Figure A-12. USB-6229 BNC Top Panel and Pinout
