National Instruments NI 6259 User Manual

© National Instruments | 4-19
M Series User Manual
When to Use Referenced Single-Ended (RSE)
Connections with Ground-Referenced Signal Sources
Do not use RSE connections with ground-referenced signal sources. Use NRSE or DIFF
connections instead.
As shown in the bottom-rightmost cell of Table 4-3, there can be a potential difference between
AI GND and the ground of the sensor. In RSE mode, this ground loop causes measurement
errors.
Using Differential Connections for Ground-Referenced
Signal Sources
Figure 4-10 shows how to connect a ground-referenced signal source to the M Series device
configured in DIFF mode.

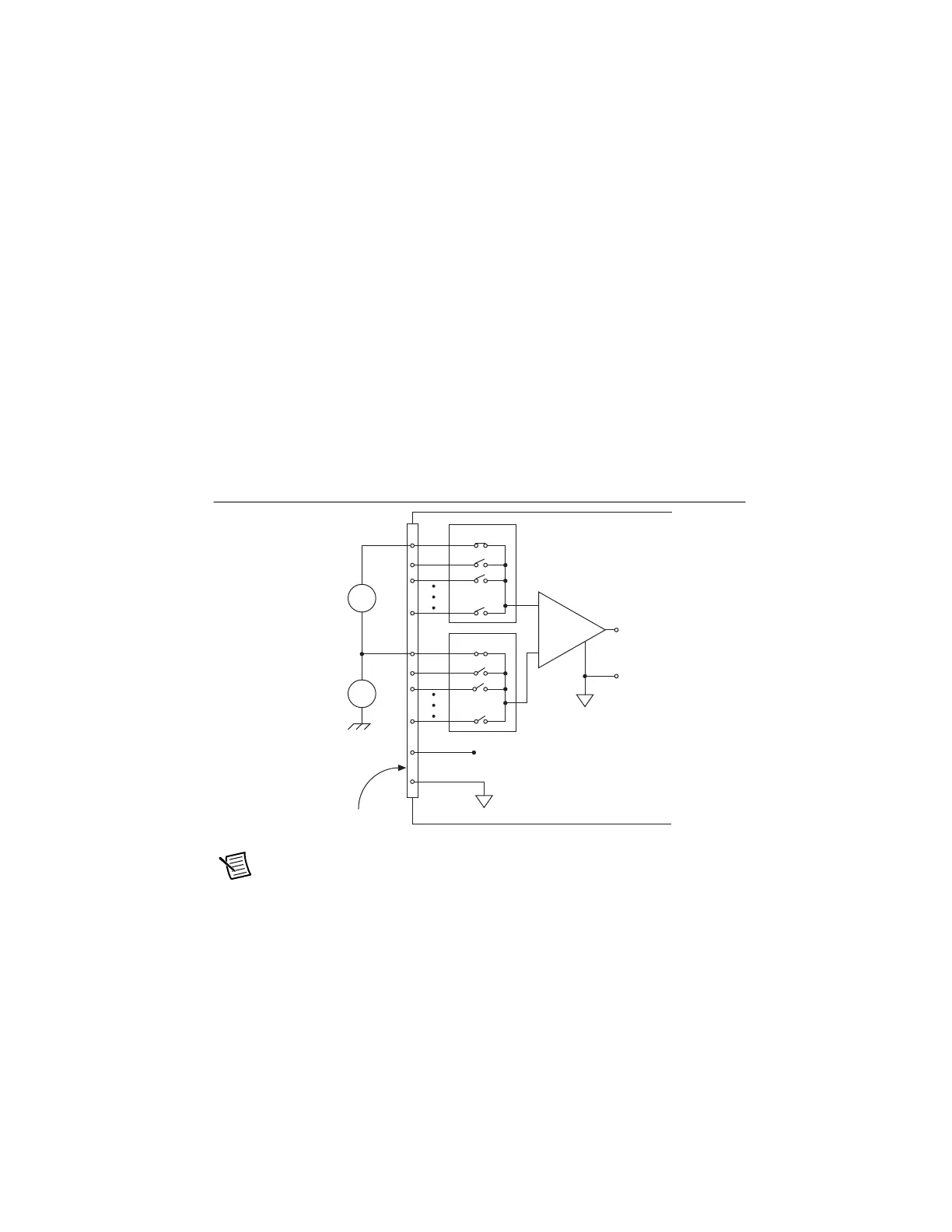

Figure 4-10. Differential Connections for Ground-Referenced Signal Sources
Note (NI USB-62xx BNC Devices) To measure a ground-referenced signal source
on USB BNC devices, move the switch under the BNC connector to the GS position.
With this type of connection, the NI-PGIA rejects both the common-mode noise in the signal and
the ground potential difference between the signal source and the device ground, shown as V
cm
in the figure.
AI+ and AI- must both remain within ±11 V of AI GND.
M Series Device Configured in DIFF Mode
PGIA
–
+
–
+
–
+
–
+
V
cm
V
s
Ground-
Referenced
Signal
Source
Common-
Mode
Noise and
Ground
Potential
AI GND
AI SENSE
Input Multiplexers
V
m
Measured
Voltage
Instrumentation
Amplifier
AI+
AI–
I/O Connector
