You can attach a wire to the ground lug screw of any USB-62xx device, as shown in Figure 1-3.

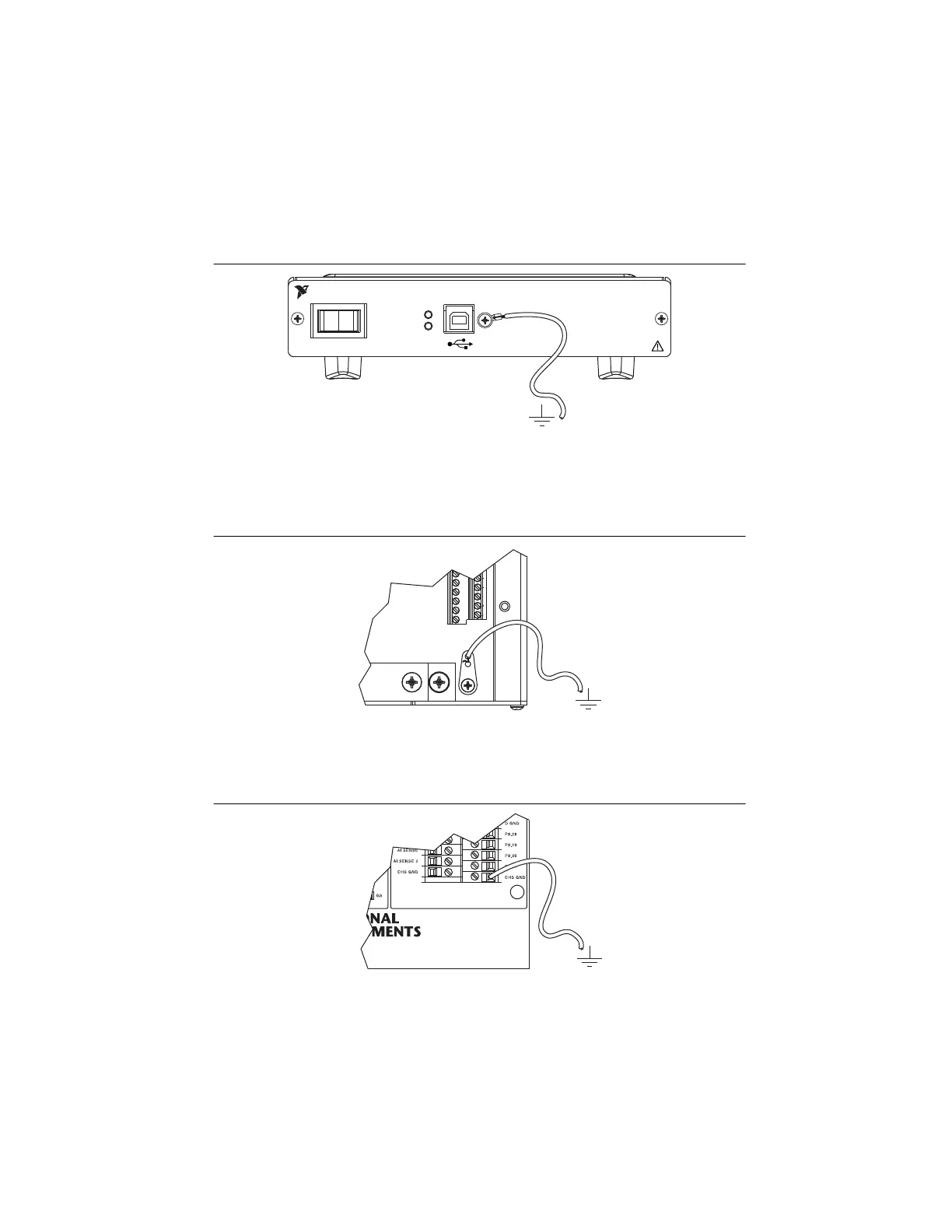

Figure 1-3. Grounding a USB-62xx Device through the Ground Lug Screw
(USB-6225/625x/628x Screw Terminal Devices) You can attach and solder a wire to the
chassis ground lug of certain USB-62xx Screw Terminal devices, as shown in Figure 1-4. The
wire should be as short as possible.
Figure 1-4. Grounding a USB-62xx Screw Terminal Device through the Chassis Ground
Lug
(USB-62xx BNC Devices) You can attach a wire to a CHS GND screw terminal of any
USB-62xx BNC device, as shown in Figure 1-5. Use as short a wire as possible. In addition, the
wires in the shielded cable that extend beyond the shield should be as short as possible.
Figure 1-5. Grounding a USB-62xx BNC Device through the CHS GND Screw Terminal
NI USB-62xx
Multifunction I/O with
Correlated Digital I/O for USB
ACTIVE
READY
ON OFF
NATIONAL
INSTRUMENTS
