National Instruments NI 9149 User Manual

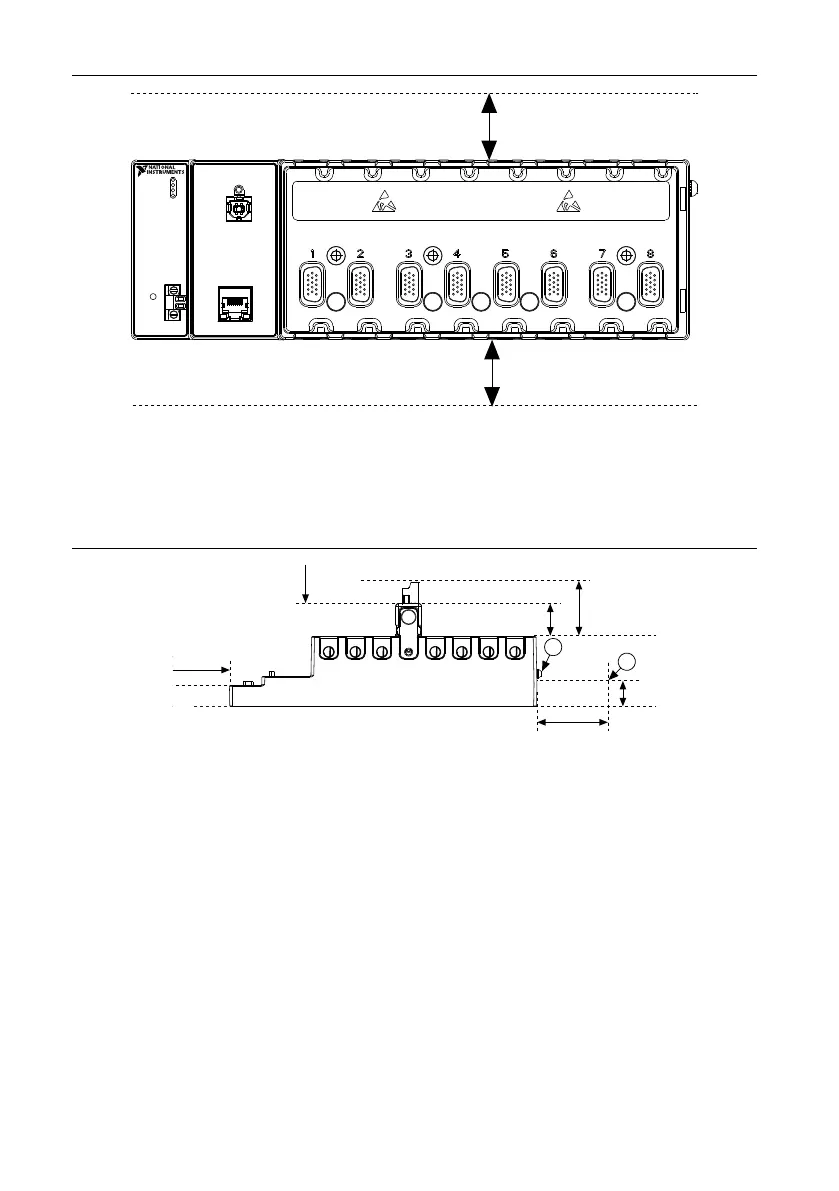

Figure 9. NI 9149 Cooling Dimensions
25.4 mm (1.00 in.)
25.4 mm (1.00 in.)
Allow the appropriate space in front of C Series modules for cabling clearance, as shown in
the following figure. The different connector types on C Series modules require different
cabling clearances. For a complete list of cabling clearances for C Series modules, visit
ni.com/info and enter the Info Code crioconn.
Figure 10. NI 9149 Cabling Clearance
62.3 mm
(2.45 in.)
25.4 mm
(1.00 in.)
1
2
2
63.5 mm
(2.50 in.)
Cabling Clearance
50.8 mm (2.00 in.)
29.1 mm
(1.14 in.)
50.8 mm
(2.00 in.)
25.4 mm
(1.00 in.)
63.5 mm
(2.50 in.)
Ambient Temperature
Measure the ambient temperature at each side of the NI 9149, 63.5 mm (2.50 in.) from the side
and 25.4 mm (1.00 in.) forward from the rear of the NI 9149, as shown in the following figure.
NI 9149 User Manual | © National Instruments | 13

National Instruments NI 9149 Specifications

General

Brand	National Instruments
Model	NI 9149
Category	Adapter
Language	English
