System Reset

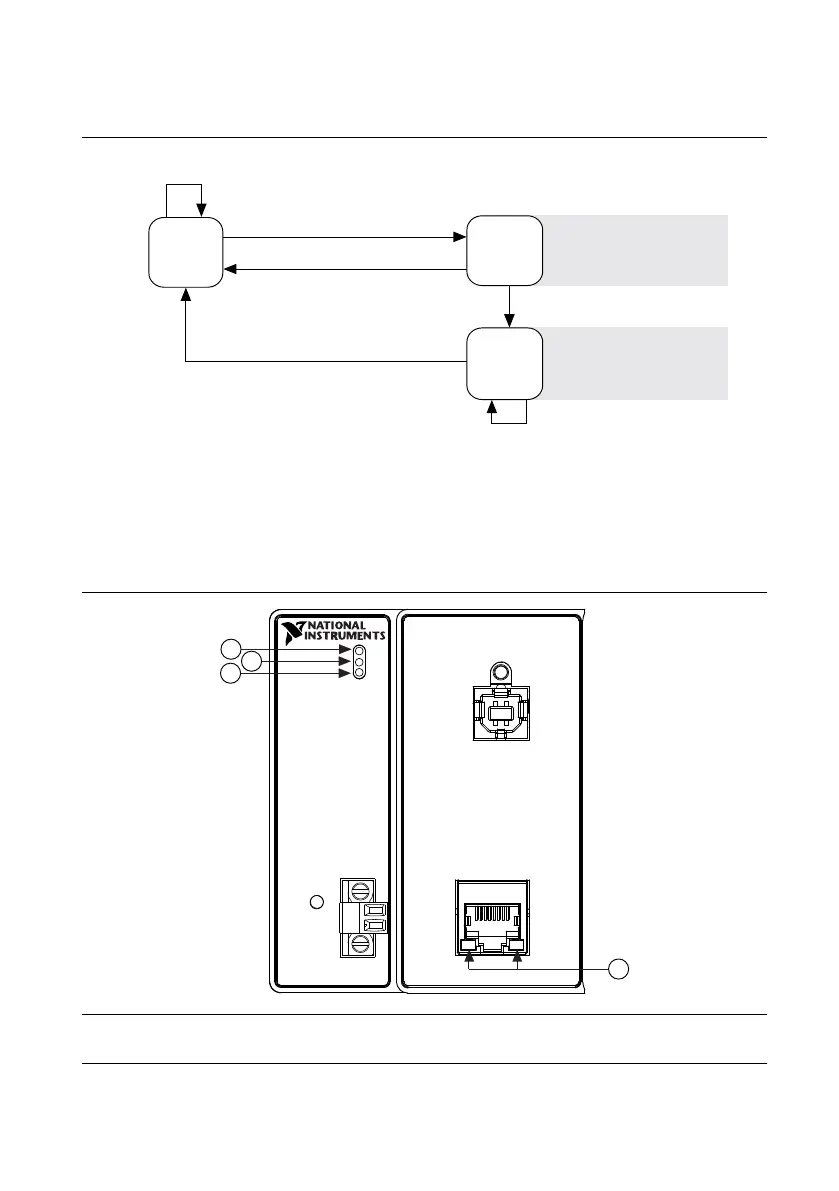

The following figure shows the reset behavior of the NI 9149.
Figure 3. Reset Button Behavior
Press and hold RESET button for ≥ 5 s
Press and hold RESET button for < 5 s
Run Mode
Safe Mode
Press and hold RESET button for < 5 s
Press and hold RESET button for ≥ 5 s
Press and hold
RESET button for ≥ 5 s
Press and hold
RESET button for < 5 s
• Network settings reset
• FPGA Startup App disabled
• FPGA Startup App disabled
Safe Mode
LEDs
The NI 9149 provides the following LEDs.
Figure 4. NI 9149 LEDs
1
4
2
3
1. POWER LED
2. STATUS LED
3. USER FPGA1 LED
4. RJ-45 Ethernet LEDs
