National Instruments NI 9149 User Manual

Surface Mounting Dimensions
The following figure shows the surface mounting dimensions for the NI 9149.

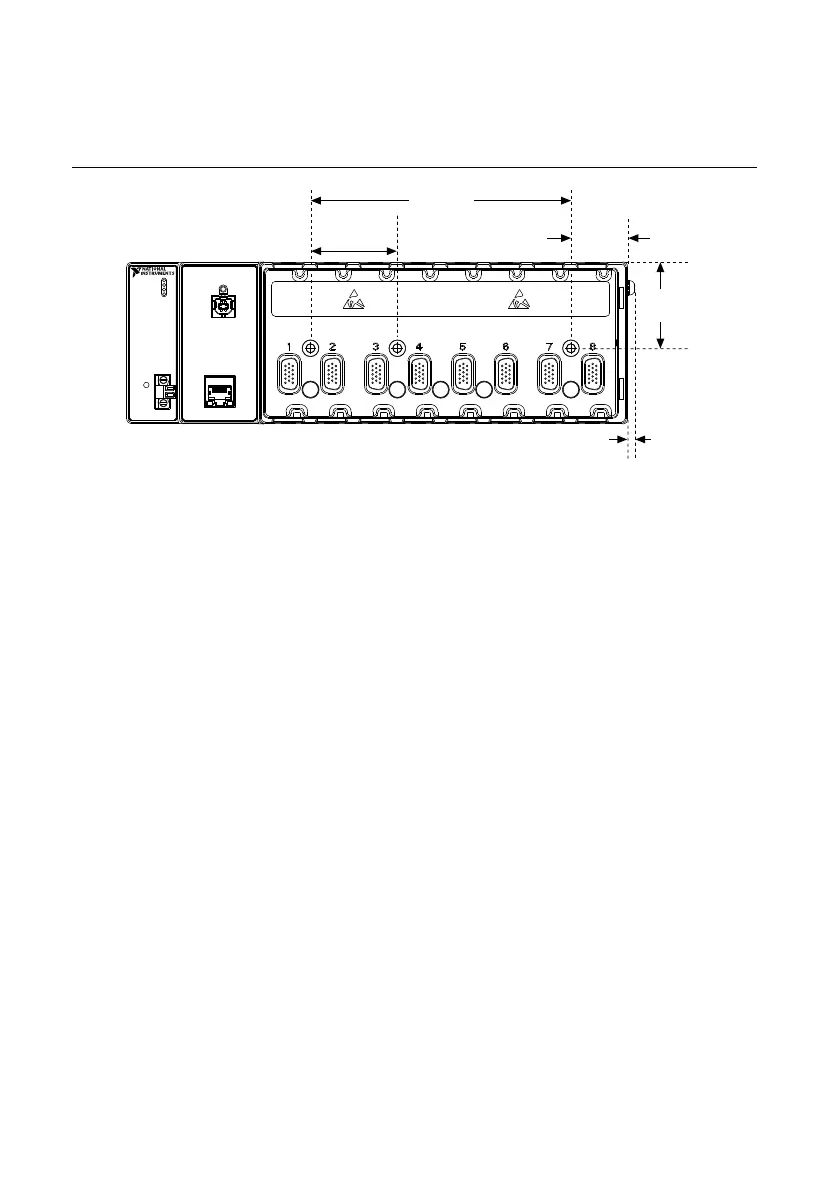

Figure 12. NI 9149 Surface Mounting Dimensions
47.2 mm
(1.86 in.)
141.7 mm
(5.58 in.)
30.8 mm
(1.21 in.)
47.0 mm
(1.85 in.)
4.1 mm
(0.16 in.)
Mounting the Device on a Panel
You can use the NI panel mounting kit to mount the NI 9149 on a panel.
What to Use
• NI 9149
• Screwdriver, Phillips #2
• NI panel mounting kit, 782863-01
– Panel mounting plate
– M5 or number 10 screw (x4)
What to Do
Complete the following steps to mount the NI 9149 on a panel.
