What to Use
• NI 9149
• Screwdriver, Phillips #2
• NI DIN rail mounting kit, 779018-01
– DIN rail clip
– M4 × 25 flathead screw (x2)
What to Do
Complete the following steps to mount the NI 9149 on a DIN rail.

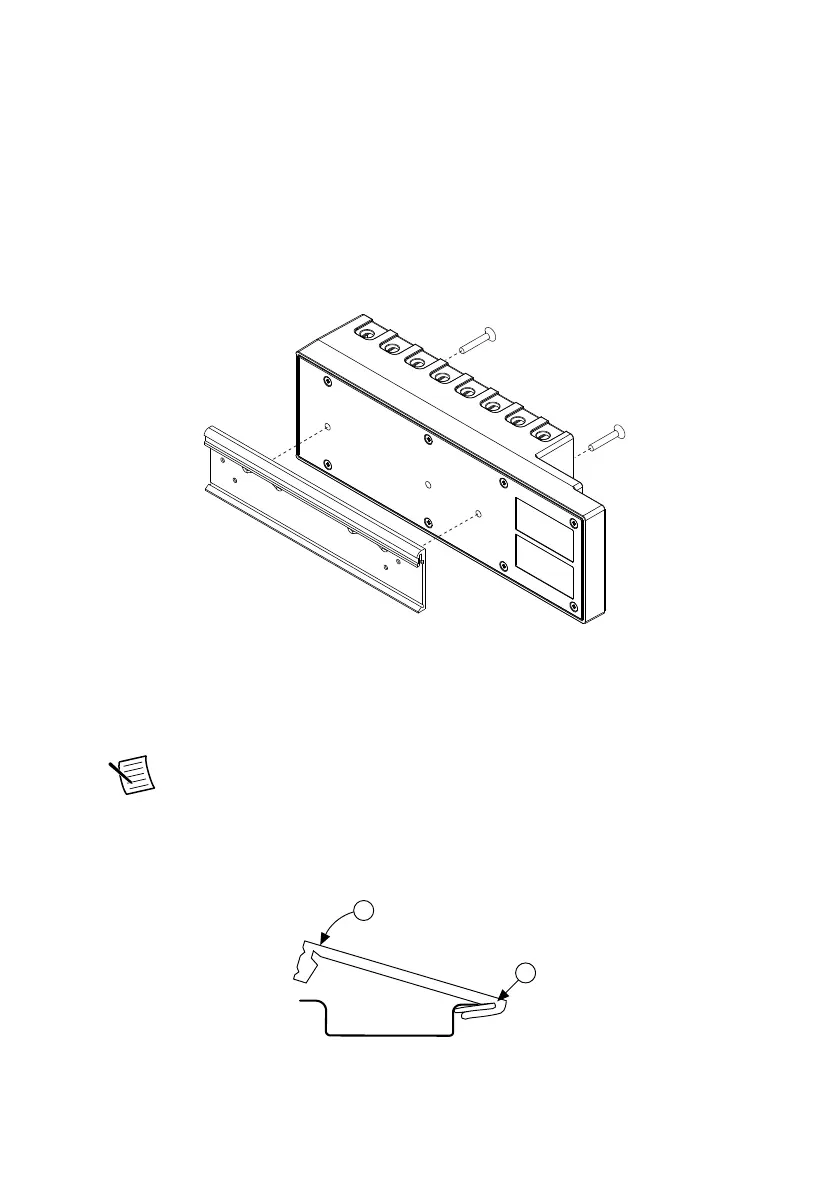

1. Align the NI 9149 and the DIN rail clip.
2. Fasten the DIN rail kit to the NI 9149 using the screwdriver and M4 × 25 flathead screws.
NI provides these screws with the DIN rail mounting kit. Tighten the screws to a
maximum torque of 1.3 N · m (11.5 lb · in.).
Note You must use the screws provided with the NI DIN rail mounting kit
because they are the correct depth and thread for the DIN rail clip.
Clipping the Device on a DIN Rail
Complete the following steps to clip the NI 9149 on a DIN rail.
1
2
1. Insert one edge of the DIN rail into the deeper opening of the DIN rail clip.
NI 9149 User Manual | © National Instruments | 17
