14 | ni.com | NI 9751 User Manual

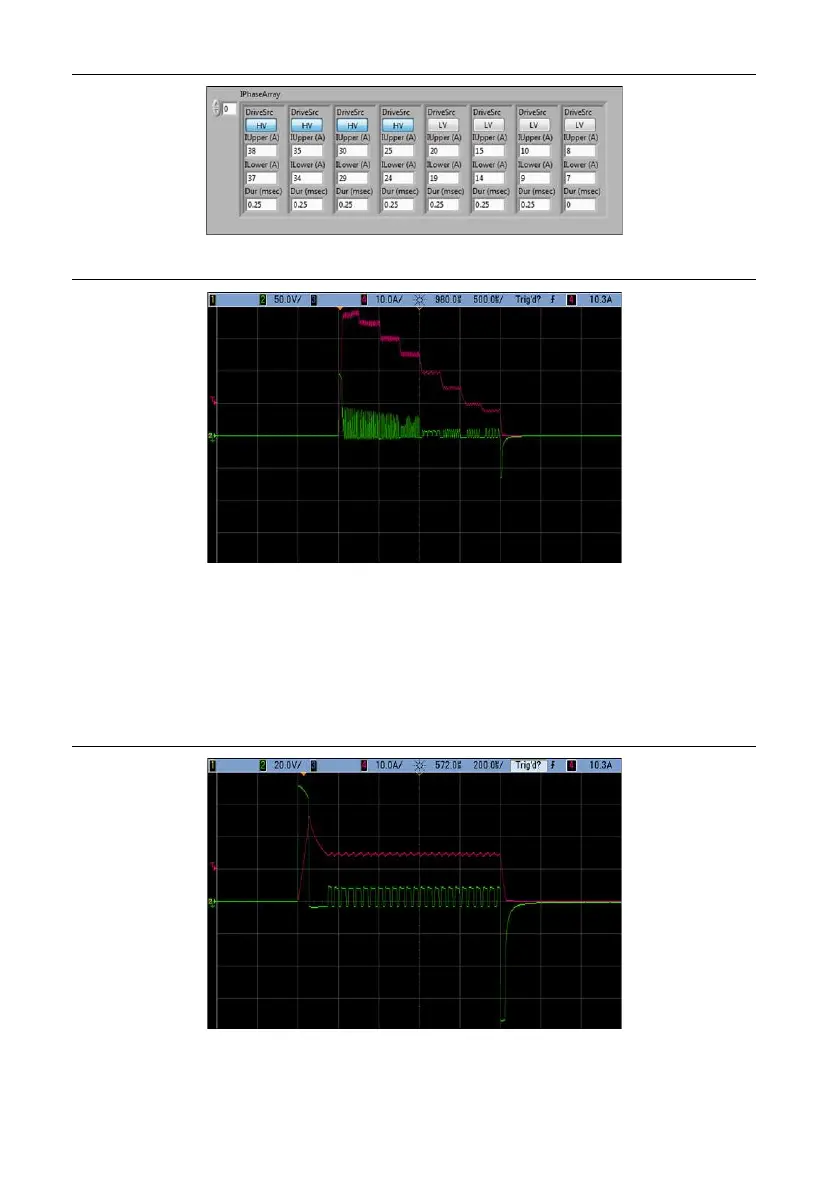

Figure 8. Solenoid IPhaseArray Configuration Example 4
Figure 9. Current and Voltage Traces from Solenoid IPhaseArray Configuration Example 4
Phase1FirstPeakEnable
The Phase1FirstPeakEnable is a Boolean control that transfers operation from the first phase to
the second phase upon reaching the first current peak that corresponds to the first phase IUpper
threshold, as shown in Figure 10.
Figure 10. Current and Voltage Traces from
Phase1FirstPeakEnable=TRUE Operating Mode
