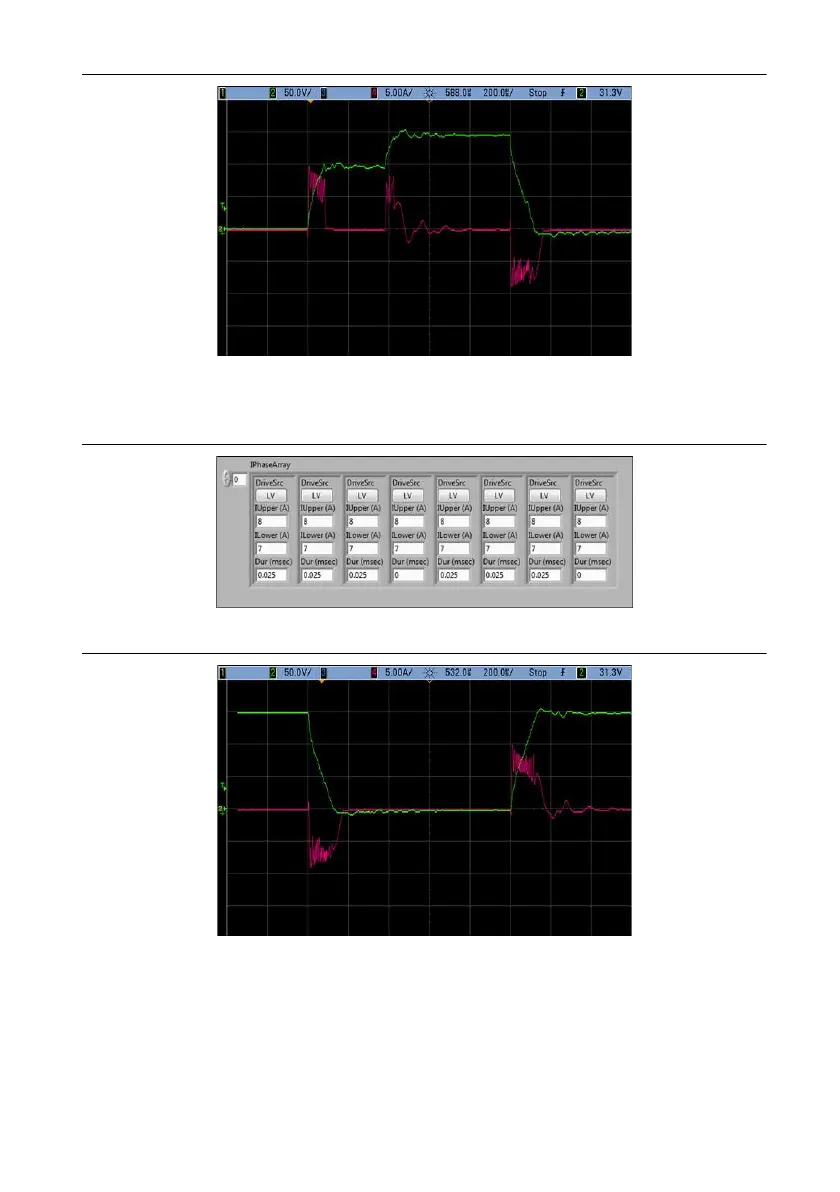

Figure 27. Current and Voltage Traces from Piezo IPhaseArray Configuration Example 5
HVTarget = 150 V. Charge voltage = 100 V step, then 150 V.
Figure 28. Piezo IPhaseArray Configuration Example 6
Figure 29. Current and Voltage Traces from Piezo IPhaseArray Configuration Example 6
HVTarget = 150 V. Inverted piezo operation.
