NI cDAQ-9181/9184/9188/9191 User Manual

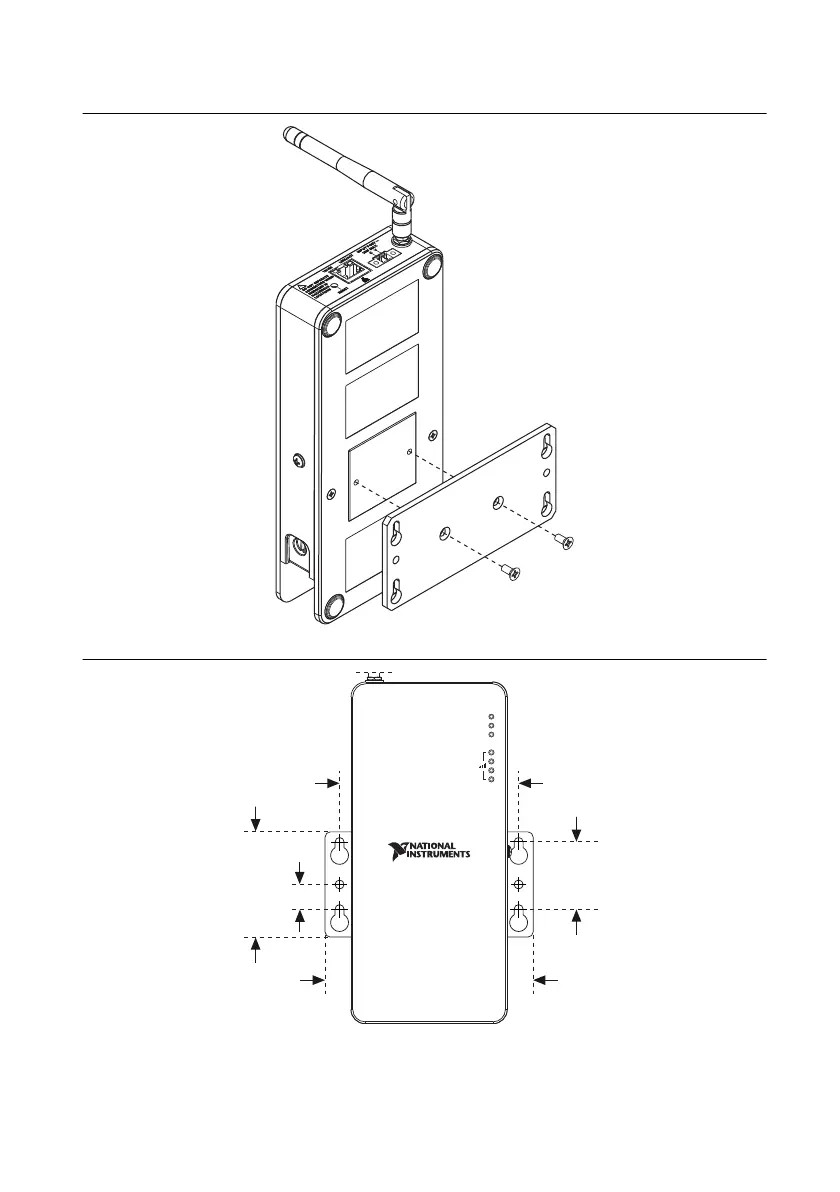

Figure 1-12. Installing the cDAQ-9181/9191 Panel Mount Kit
Figure 1-13. NI 9903 Panel Mount Accessory Dimensions
101.6 mm
(4.00 in.)
59.7 mm
(2.35 in.)
38.1 mm
(1.5 in.)
14.0 mm
(0.55 in.)
118.1 mm
(4.65 in.)
POWER
STATUS
ACTIVE
