Ethernet Cabling
Table 1-6 shows the shielded Ethernet cable wiring connections for both straight through and
crossover cables.

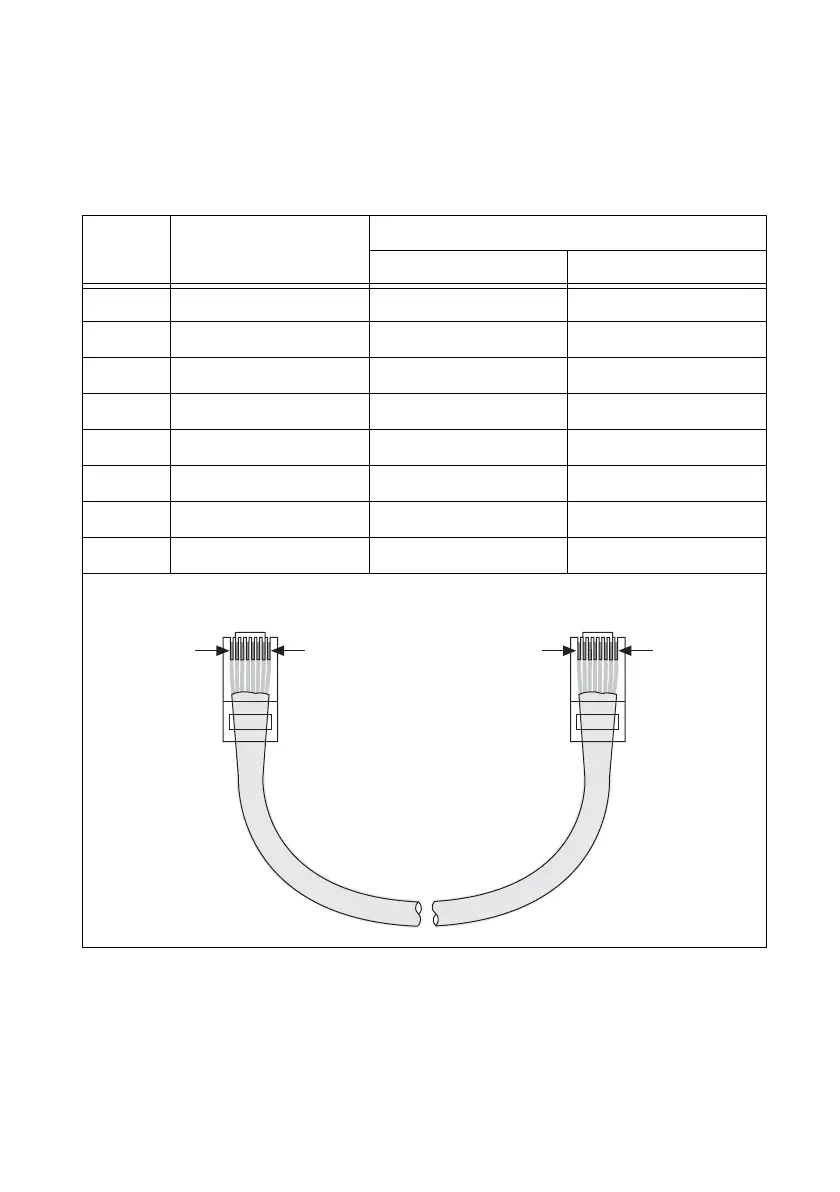

Table 1-6. Ethernet Cable Wiring Connections
Pin Connector 1
Connector 2
Straight Through Crossover
1 white/orange white/orange white/green
2 orange orange green
3 white/green white/green white/orange
4 blue blue blue
5 white/blue white/blue white/blue
6 green green orange
7 white/brown white/brown white/brown
8 brown brown brown
Connector 1 Connector 2
Pin 1
Pin 1 Pin 8Pin 8
