1-22 | ni.com
Chapter 1 Getting Started with the cDAQ Chassis

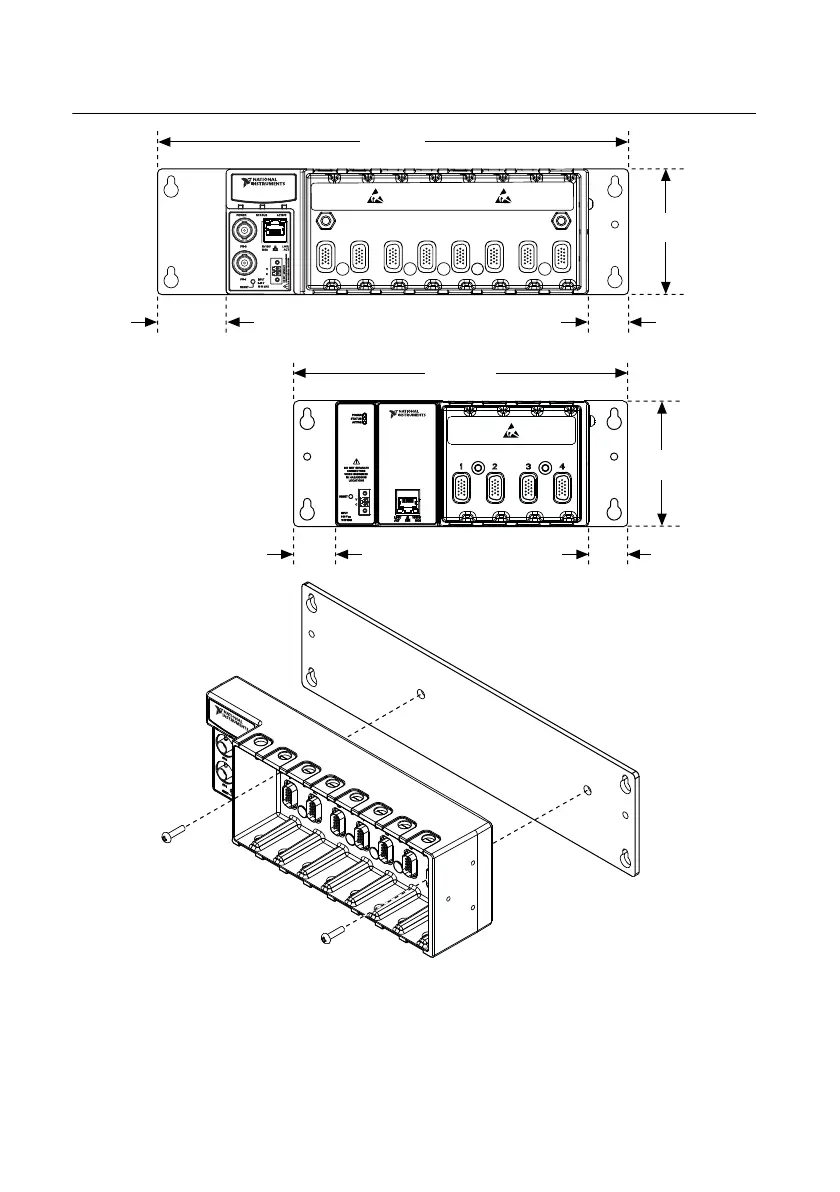

Figure 1-15. cDAQ-9184/9188 Panel Mount Dimensions and Installation
87654321
28.1 mm
(1.11 in.)
48.1 mm
(1.90 in.)
88.1 mm
(3.47 in.)
330.2 mm
(13.00 in.)
NI cDAQ-9188
NI CompactDAQ
27.30 mm
(1.08 in.)
29.49 mm
(1.16 in.)
88.1 mm
(3.47 in.)
2
34.95 mm
(9.25 in.)
NI cDAQ-8184
NI CompactDAQ
