NI 651x User Manual
Pin Assignments
NI 6510 Pin Assignments
Figure 3-1 shows the pin assignments for the SH37F-37M cable when connecting to the NI 6510
device. The naming convention for each pin is PX.Y, where X is the port (P) number, and Y is the
line number or name.

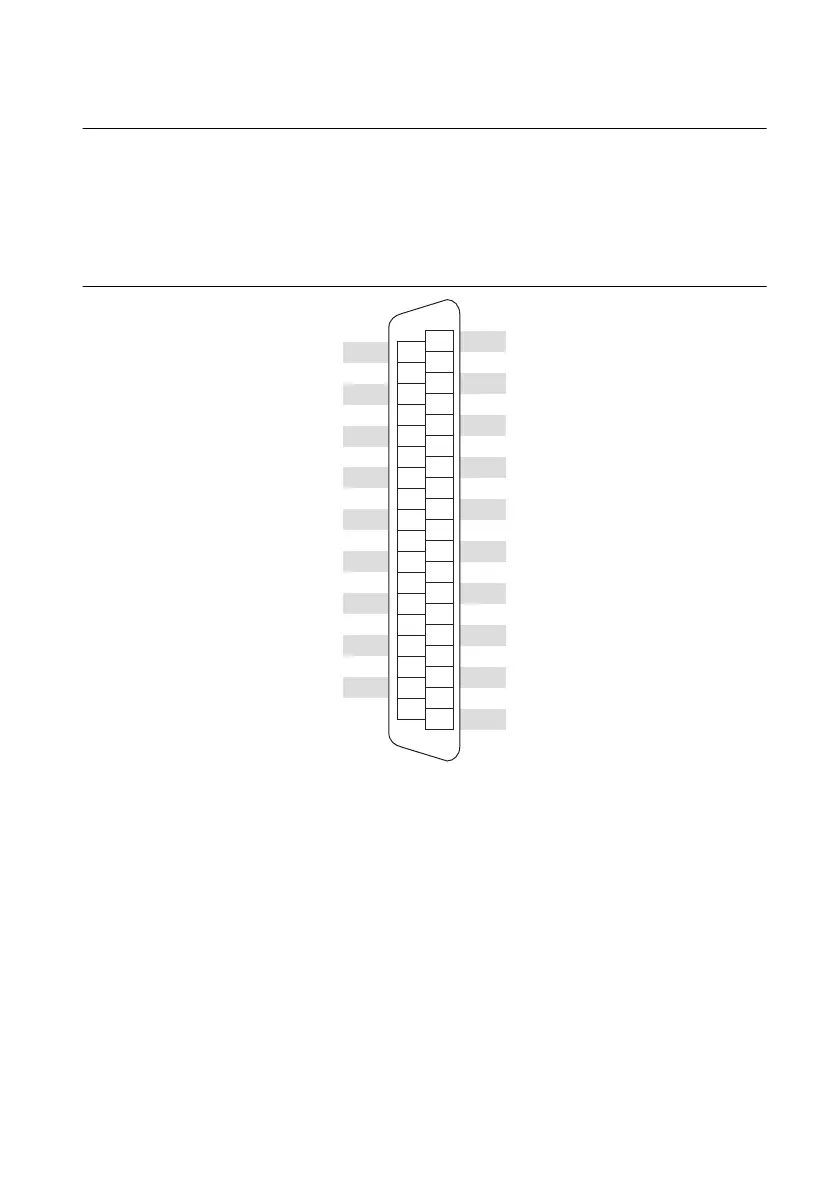

Figure 3-1. NI 6510 Pin Assignments
For more information on the NI 6510 signals, refer to the Signal Descriptions section.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
P0.0
P0.2
P0.4
P0.6
COM
P1.1
P1.3
P1.5
P1.7
P2.0
P2.2
P2.4
P2.6
COM
P3.1
P3.3
P3.5
P3.7
COM
P0.1
P0.3
P0.5
P0.7
P1.0
P1.2
P1.4
P1.6
COM
P2.1
P2.3
P2.5
P2.7
P3.0
P3.2
P3.4
P3.6
COM
