Chapter 4 Power Connections

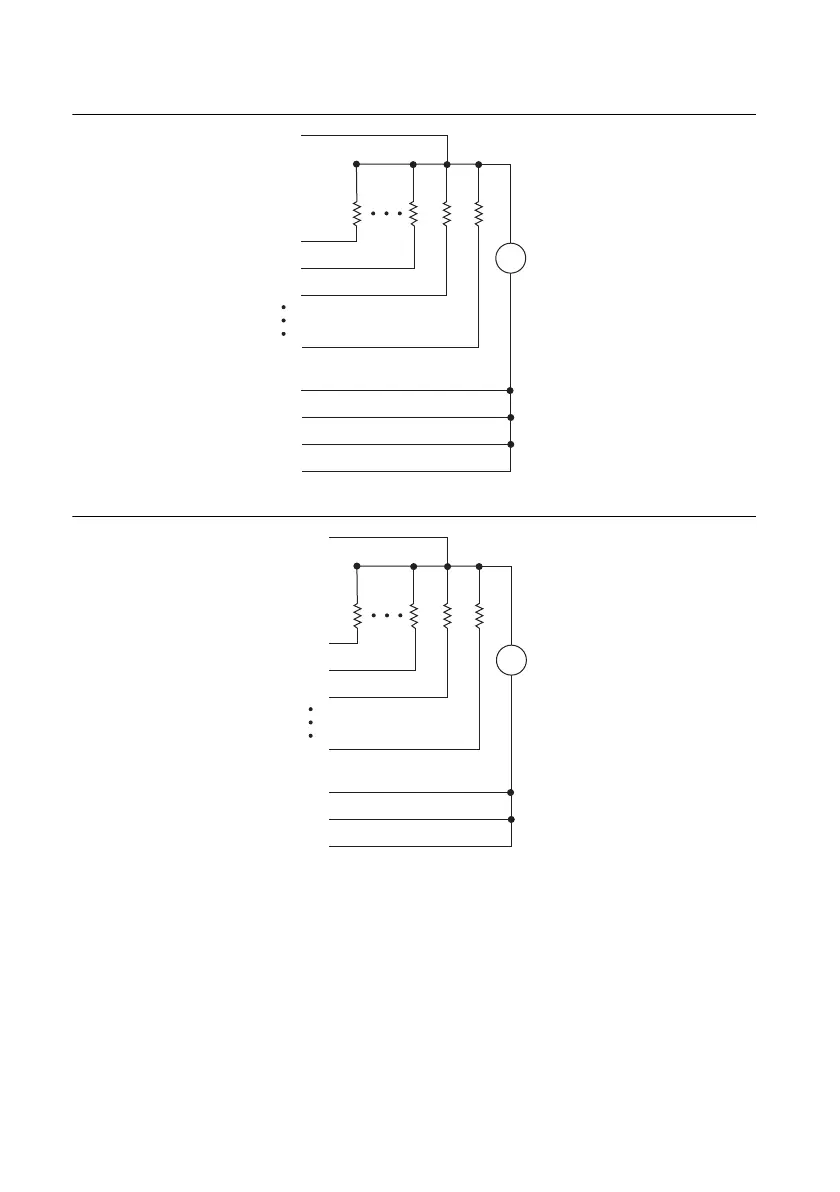

Figure 4-15. NI 6517 GND Connection Example
Figure 4-16. NI 6519 GND Connection Example
Refer to the NI SH37F-37M Cable section of Chapter 5, Cables and Accessories, for more
information.
R
L0 ...
P0.0
P0.1
P0.2
P3.7
GND, Pin 5
GND, Pin14
GND, Pin 28
GND, Pin 37
COM (VCC)
+
–
+5 V ~ +30 V
R
L0 ...
P0.0
P0.1
P0.2
P3.7
GND, Pin 10
GND, Pin 28
GND, Pin 29
OUT.COM (VCC)
+5 V ~ +30 V
–
+
