© National Instruments Corporation 15 NI Digital Waveform Generator/Analyzer Guide
The NI SHC68-H1X38 cable is a single-ended cable that breaks out each
single-ended NI digital waveform generator/analyzer signal into two 0.1 inch
header receptacles, one receptacle each for the signal and ground. The
NI SHC68-H1X38 cable provides an easy way to connect NI single-ended
high-speed digital waveform generator/analyzer devices to various types of
devices and circuits for interfacing, testing, or analysis.
This cable offers connectivity similar to that found on a typical logic
analyzer, so you can use it in logic analyzer-type applications. Unlike a
typical logic analyzer, however, this cable also allows for simultaneous
pattern generation and acquisition so that you can use it in stimulus/response
applications as well. The following figure shows the parts locator diagram for
the single-ended digital flying lead cable.

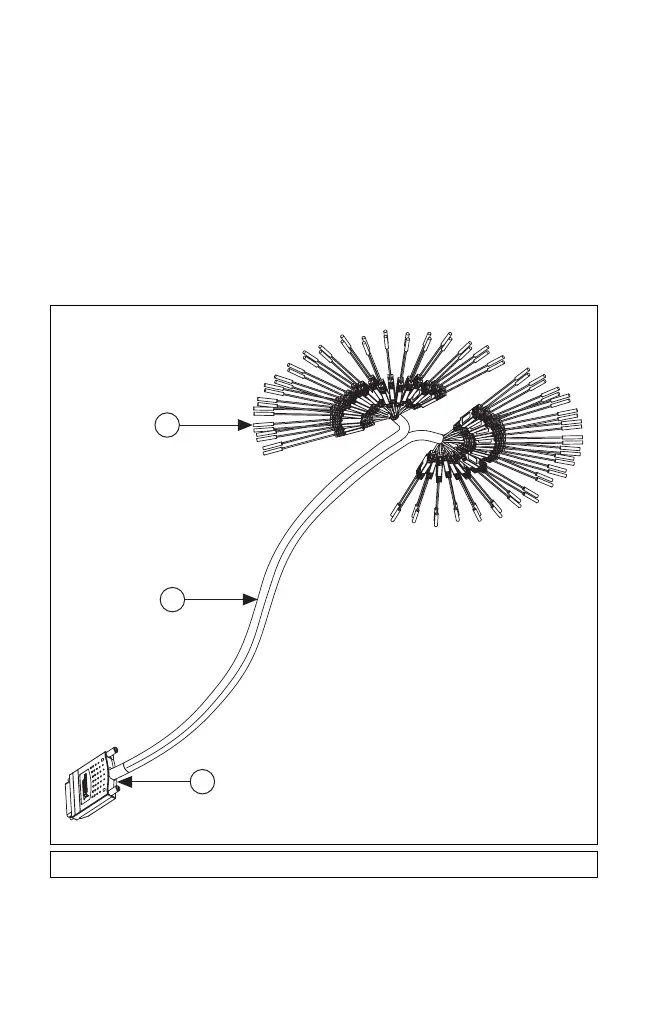

Figure 6. Single-Ended Flying Lead Cable Parts Locator Diagram
1 Lead Pairs 2 Removable Sleeving 3 68-Pin VHDCI Connector
1
2
3
