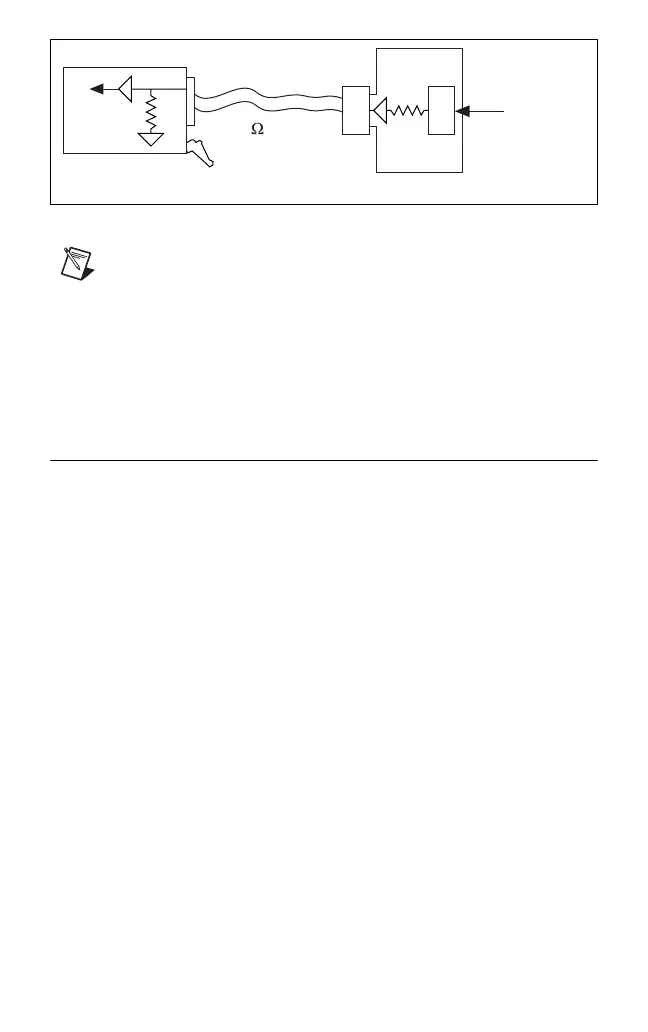

Figure 10. Dynamic Acquisition Functional Diagram
Note
NI digital waveform generator/analyzers have various input
impedances. Refer to the specifications document for your device
for supported input impedance settings.
Refer to the NI Digital Waveform Generator/Analyzer Help for more
information about signal termination.
8. Programming the Digital Waveform
Generator/Analyzer
You can generate or acquire digital data with the NI digital waveform
generator/analyzer using NI-HSDIO or NI LabVIEW SignalExpress. You
also can run the NI-HSDIO examples to demonstrate the functionality of
your device.
NI-HSDIO Instrument Driver
The NI-HSDIO API features a set of operations and attributes that exercise
all the functionality of the device, including configuration, control, and other
device-specific functions.
Information about programming with NI-HSDIO is available in the
NI Digital Waveform Generator/Analyzer Help. This online document
contains hardware information, concepts, a detailed function/VI reference
for NI-HSDIO, and information specific to your device.
NI LabVIEW SignalExpress Limited Edition
NI-HSDIO 1.5 and later includes a stand-alone, evaluation version of
NI LabVIEW SignalExpress that allows you to quickly configure your
NI hardware to acquire, generate or perform hardware comparison using
your NI digital waveform generator/analyzer. This software integrates with
the NI Digital Waveform Editor to allow you to create and modify complex
digital waveforms and then generate the data on your NI digital waveform
generator/analyzer.
NI 655
X
NI CB-2162
R
S
R
T
Peripheral
Device
50 Cable
