© National Instruments Corporation 17 NI Digital Waveform Generator/Analyzer Guide

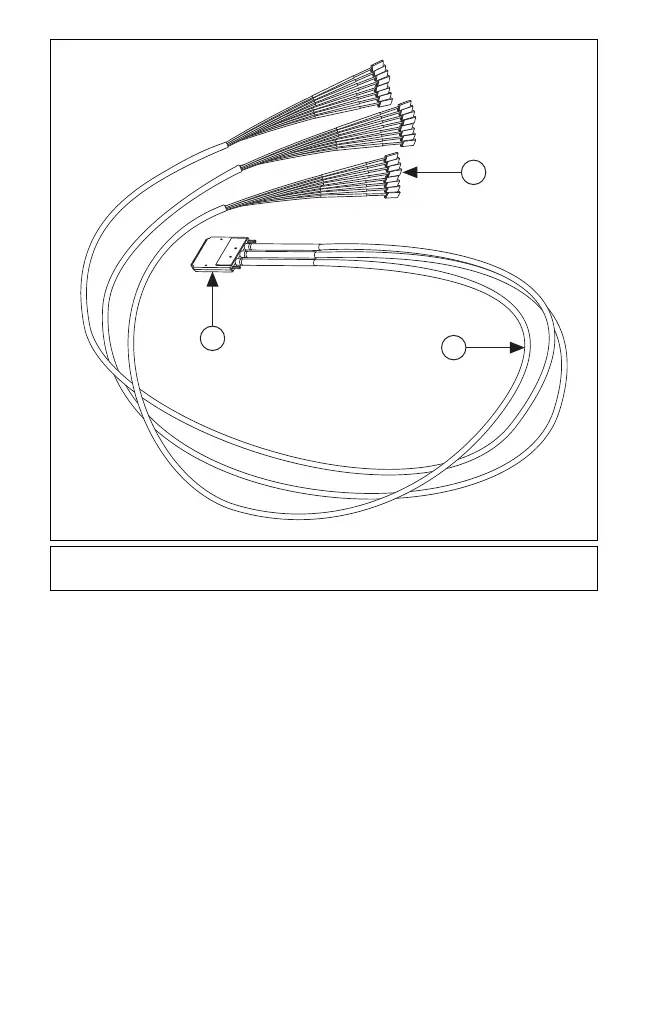

Figure 8. NI SHB 12X-H3X24 Flying Lead Cable
Creating a Custom Accessory
Many common NI digital waveform generator/analyzer applications may
require you to create a custom accessory to easily access the signals of your
DUT. If you are creating a custom accessory to use with a device with a
VHDCI DDC connector, you can purchase the mating connector for the
VHDCI cable from NI (part number 778914-01). For more information about
creating these custom accessories, refer to the Interfacing to the NI Digital
Waveform Generator/Analyzer using the VHDCI Connector application
note, available by entering
rdinwa in the text field at ni.com/info. If you
are designing a custom accessory to use with a device that uses an Infiniband
connector, you can also purchase this connector (part number 779157-01).
Refer to Appendix A: Device Front Panels for descriptions of the signals and
pinout diagrams.
1 Leads (1 x 3 Header Receptacle)
2 12x Infiniband Connector
3 Removeable Sleeving
1
2
3
