PCI-8366 Low-Profile Bracket
Installation Instructions
This appendix describes how to install a low-profile bracket on the PCI-8366. For specifications
for the PCI-8366, refer to Appendix B, Specifications for Legacy Products.
Installing the PCI-8366
1. Disconnect the fiber optic cable from the cabled PCI Express connector.
2. Move the release lever downwards until it is pointing towards you.
3. Gently pull the release lever toward you to release the catch mechanism of the SFP module.
The SFP module should easily slide out of the receptacle as shown in Figure D-1.

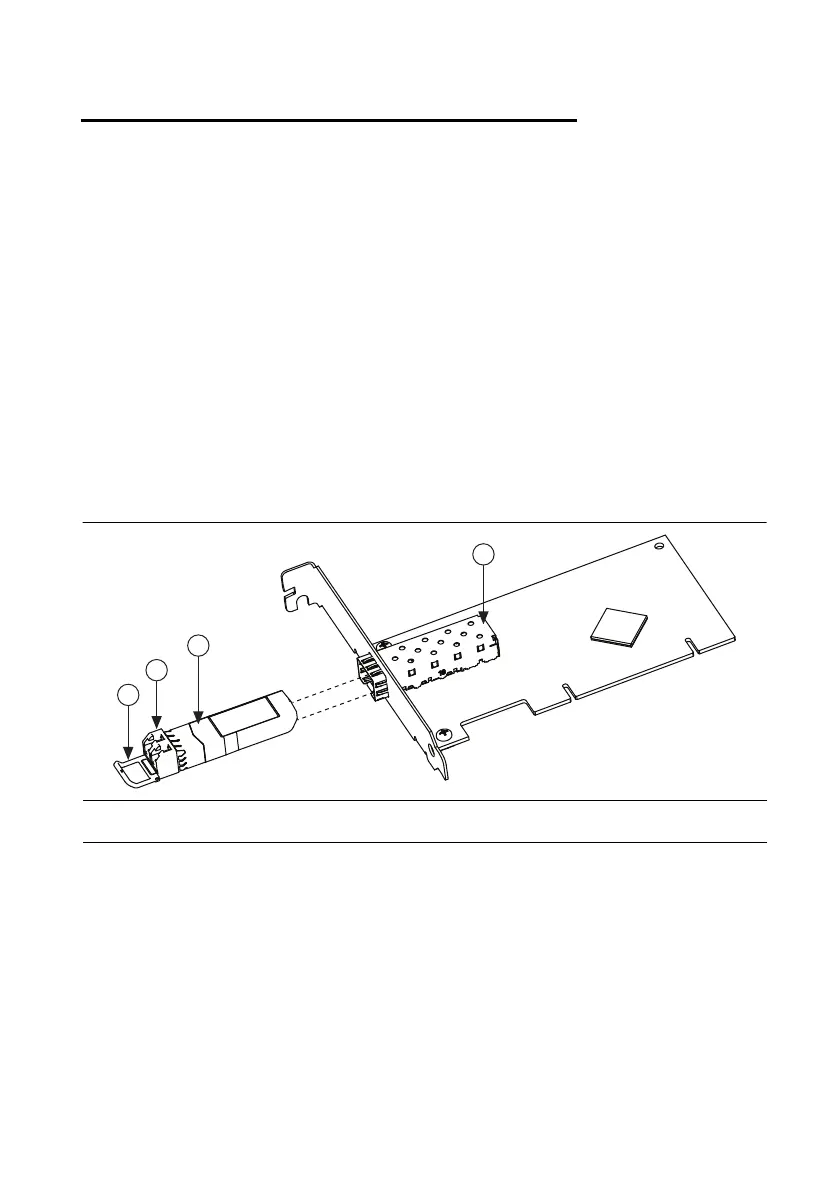

Figure D-1. SFP Module Removal
4. Remove the two 4-40 × 1/4 inch Phillips head screws that attach the standard height bracket
to the card as shown in Figure D-2. Set the screws aside to re-use when installing the
low-profile bracket.
1 Release Lever
2 Cabled PCI Express Connector
3 SFP Module
4SFP Receptacle
3
2
1
4
