National Instruments PCI-8361 User Manual

B-2 | ni.com
Appendix B Specifications for Legacy Products
Functional Block Diagram

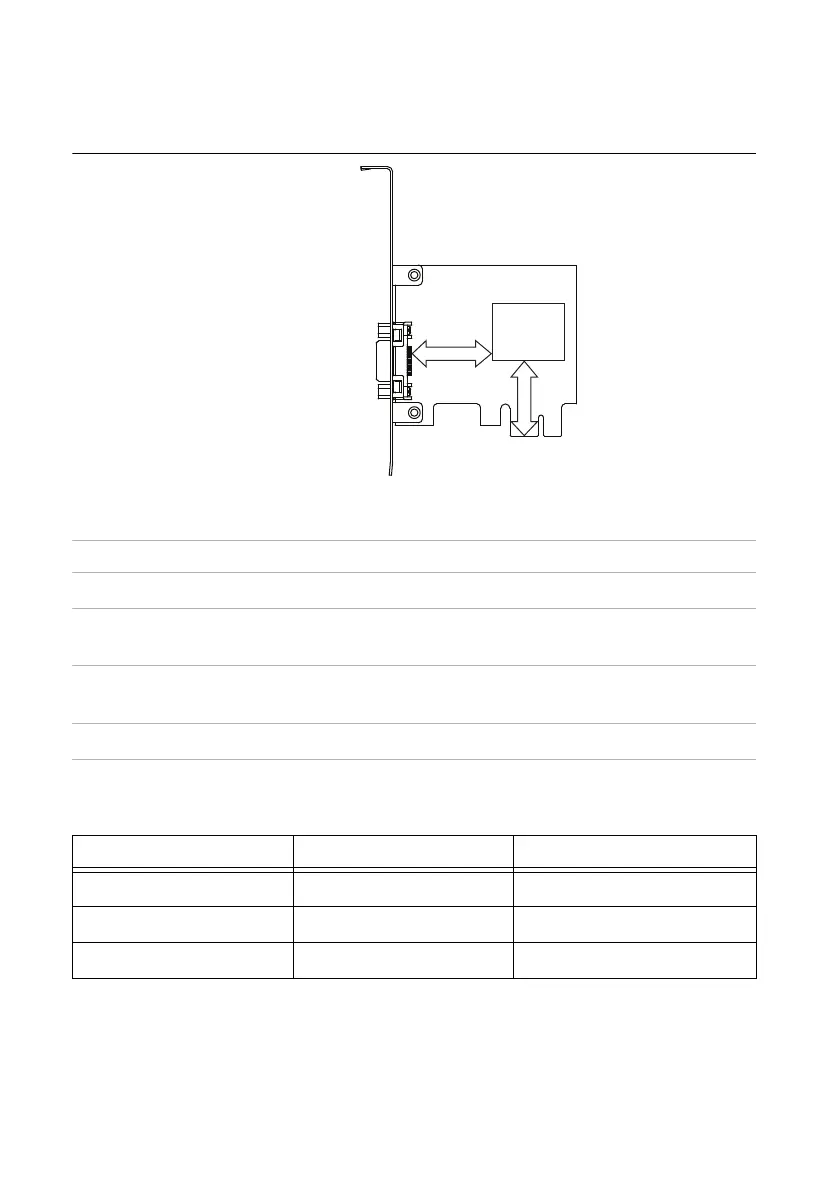

Figure B-1. PCIe-8361 Repeater Version (195315x-01L) Block Diagram
Physical
Dimensions 6.9 cm × 8.9 cm (2.7 in. × 3.5 in.)
Maximum cable length 7 m
Slot requirements One slot (PCI Express, standard height or low
profile)
Compatibility Fully compatible with the PCI Express
Specification, Revision 1.0a
Weight 0.04 kg (0.08 lb) typical
Power Requirements
Power Rail Typical Current Maximum Current
+3.3 V 200 mA 400 mA
+3.3 VAux 10 mA 50 mA
+12 V 0 A 0 A
Signal
Repeater
MXI-Express x1
Copper
PCIe Gen 1 x1
PCIe Gen 1 x1

National Instruments PCI-8361 Specifications

General

Brand	National Instruments
Model	PCI-8361
Category	PCI Card
Language	English
