Appendix A Specifications
© National Instruments Corporation A-9 NI PXI-1042 Series User Manual
Figures A-1 and A-2 show the PXI-1042 Series chassis dimensions. The
holes shown are for the installation of the optional rack mount kit. You can
install this kit on the front or rear of the chassis, depending on which end
of the chassis you want to face toward the front of the instrument cabinet.
Notice that the front and rear chassis mounting holes (size M4) are
symmetrical.

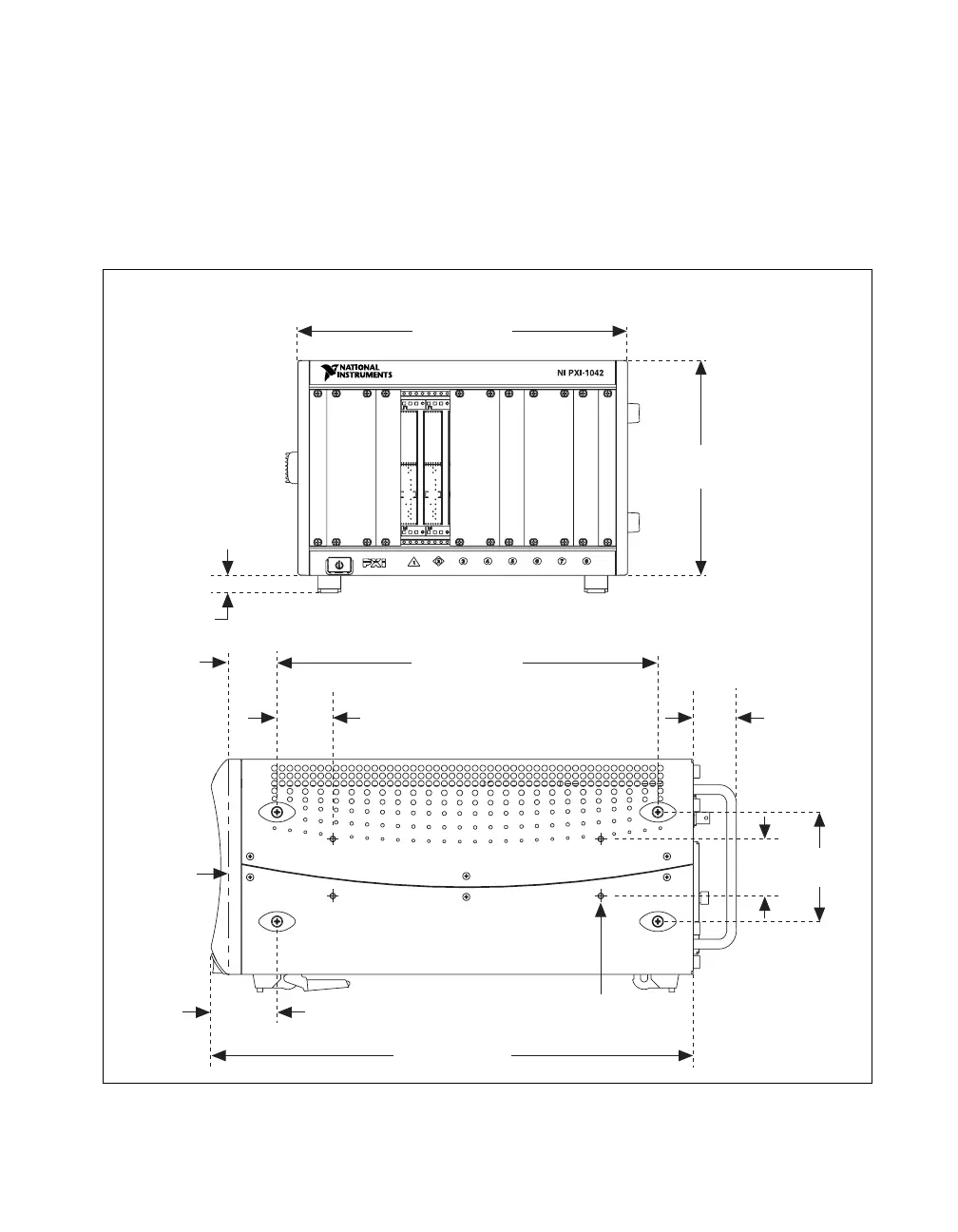

Figure A-1. PXI-1042 Series Chassis Dimensions (Front and Side)
10.68 [271.3]
12.334 [313.38]
15.61 [396.5]
6.97
[177.0]
0.57
[14.5]
3.542
[89.97]
1.844
[46.84]
1.40
[35.6]
1.823
[46.30]
1.68
[42.7]
Front of
PXI Card
2.13
[54.1]
Dimensions are in inches [millimeters]
8X, M4
