National Instruments PXIe-6570

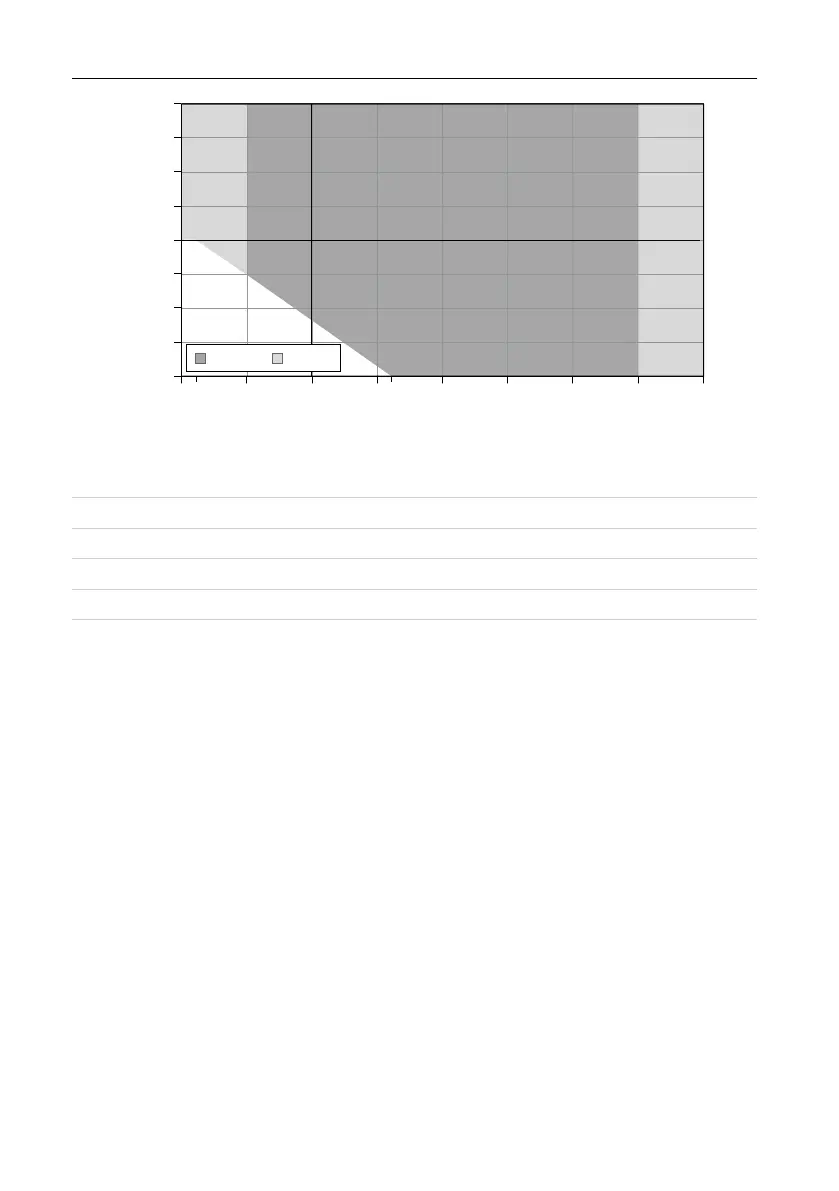

Figure 3. Warranted Current Accuracy Zones for PPMU Measure Current
Percent of Current Range Measured (%)
Voltage (V)
-25
75
50
25
0
-50
-75
1 2 3-1 0 4 5
100
-2
-100
6
Zone 2
Zone 1
1.25-1.75
PPMU Programmable Aperture Time
Aperture time
Minimum 4 μs
Maximum 65 ms
Resolution 4 μs
PXIe-6570 Specifications | © National Instruments | 9
