6 | ni.com | RMC-8357 Installation Guide
• LAN status indicators—flash when there is activity on LAN1 or LAN2.
• Overheat/fan fail indicator
– Off—Normal
– On—Overheat
– Flashing—Fan failure warning
• Power indicator—glows when the RMC-8357 is powered on.

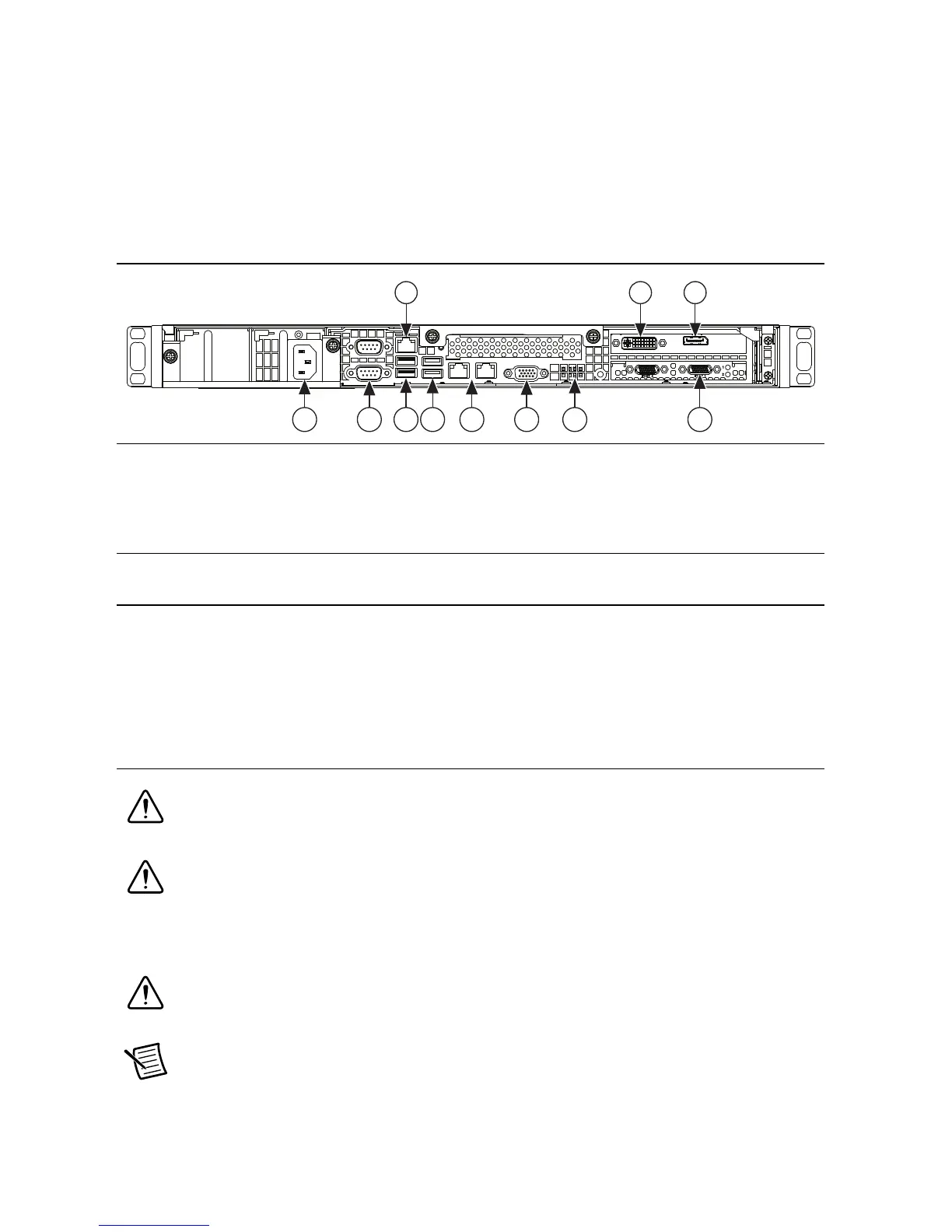

Figure 2. Rear View of the RMC-8357
RMC-8357 Overview
The RMC-8357 is a rugged 1U PC-based controller for remote control of PXI chassis. The
controller provides leading-edge processing power with Intel Xeon E5-2620 v4 processors, high
disk bandwidth with software RAID support, high I/O bandwidth with two PCI Express 3.0 x16
slots, and up to 32 GB of memory.
Safety Information
Caution Before undertaking any troubleshooting, maintenance, or exploratory
procedure, carefully read the following caution notices.
Caution Product functionality can be disrupted if the knurled thumbscrews on the
back of the top cover are subjected to Electrostatic Discharge (ESD). To prevent
damage, you must employ industry-standard ESD prevention measures during
installation, maintenance, and operation.
Caution Overloading the circuits may damage supply wiring. Do not exceed the
ratings on the equipment nameplate when connecting equipment to the supply circuit.
Note Tighten the thumbscrew for the top panel cover with a tool after both initial
installation and subsequent access.
1 IPMI Management Port
2DVI Port
3DisplayPort
4 MXI x1 Ports
5 UID Switch
6 VGA Port (Disabled By Default)
7LAN Ports
8 USB 3.0 Ports
9 USB 2.0 Ports
10 Serial Ports
11 Power Connector
1 2 3
11 10 9 8 7 6 5 4
