© National Instruments Corporation 51 NI sbRIO-961x/9612XT/963x/9632XT/964x/9642XT
Cabling
Table 6 shows the standard Ethernet cable wiring connections for both
normal and crossover cables.

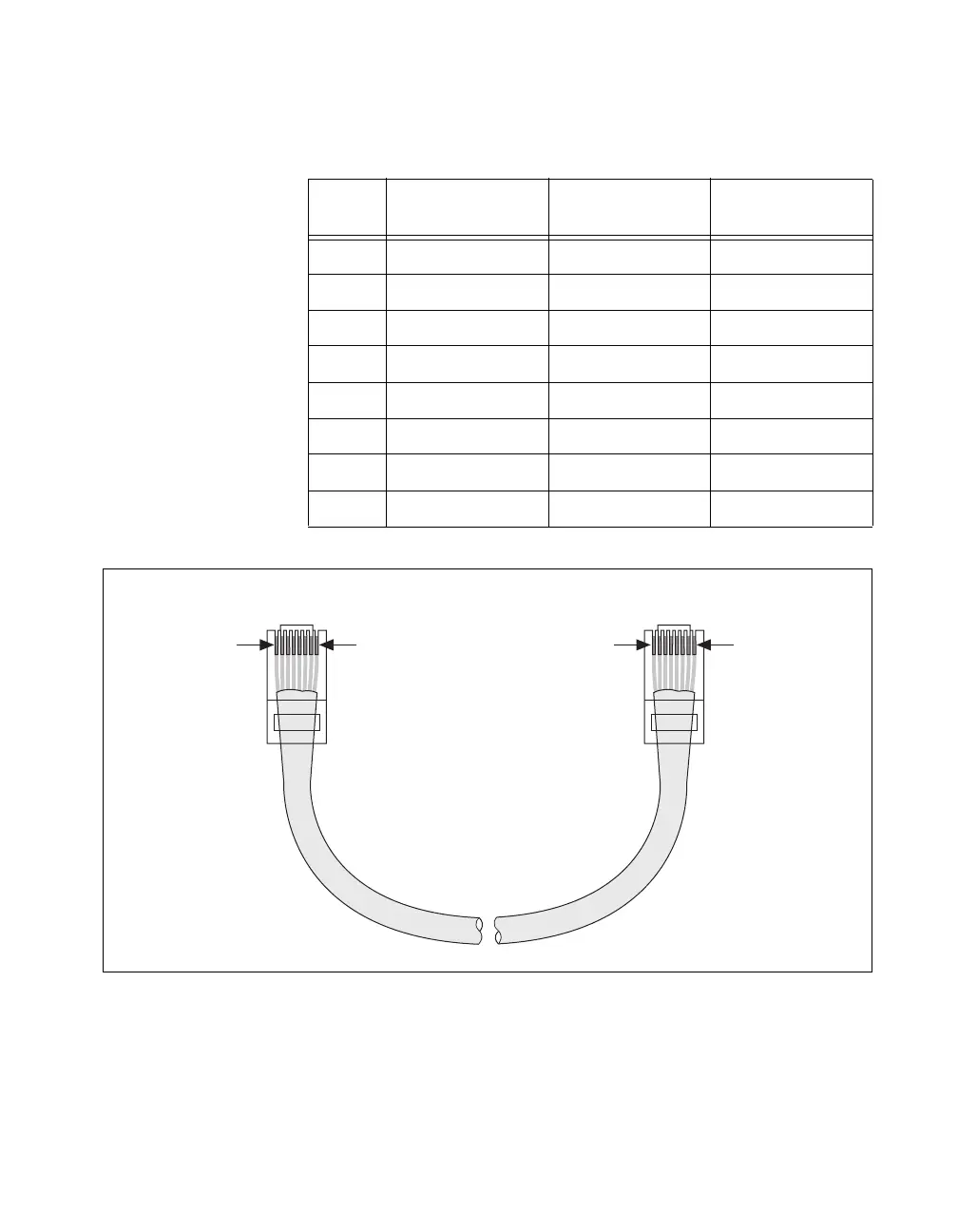

Figure 27. Ethernet Connector Pinout
Table 6. Ethernet Cable Wiring Connections
Pin Connector 1
Connector 2
(Normal)
Connector 2
(Crossover)
1 white/orange white/orange white/green
2 orange orange green
3 white/green white/green white/orange
4 blue blue blue
5 white/blue white/blue white/blue
6 green green orange
7 white/brown white/brown white/brown
8 brown brown brown
C
onnector 1
C
onnector 2
Pin 1
Pin 1 Pin 8Pin 8
