National Instruments SCXI-1353 User Manual

SCXI-1353 Shielded Cable Assembly 4 ni.com
This category is a signal level such as voltages on a printed wire board
(PWB) on the secondary of an isolation transformer.
Examples of installation category I are measurements on circuits not
derived from MAINS and specially protected (internal) MAINS-derived
circuits.
Installing the SCXI-1353 Shielded Cable Assembly
Perform the following steps to install the SCXI-1353. Refer to Figure 1 for
the installation procedure.

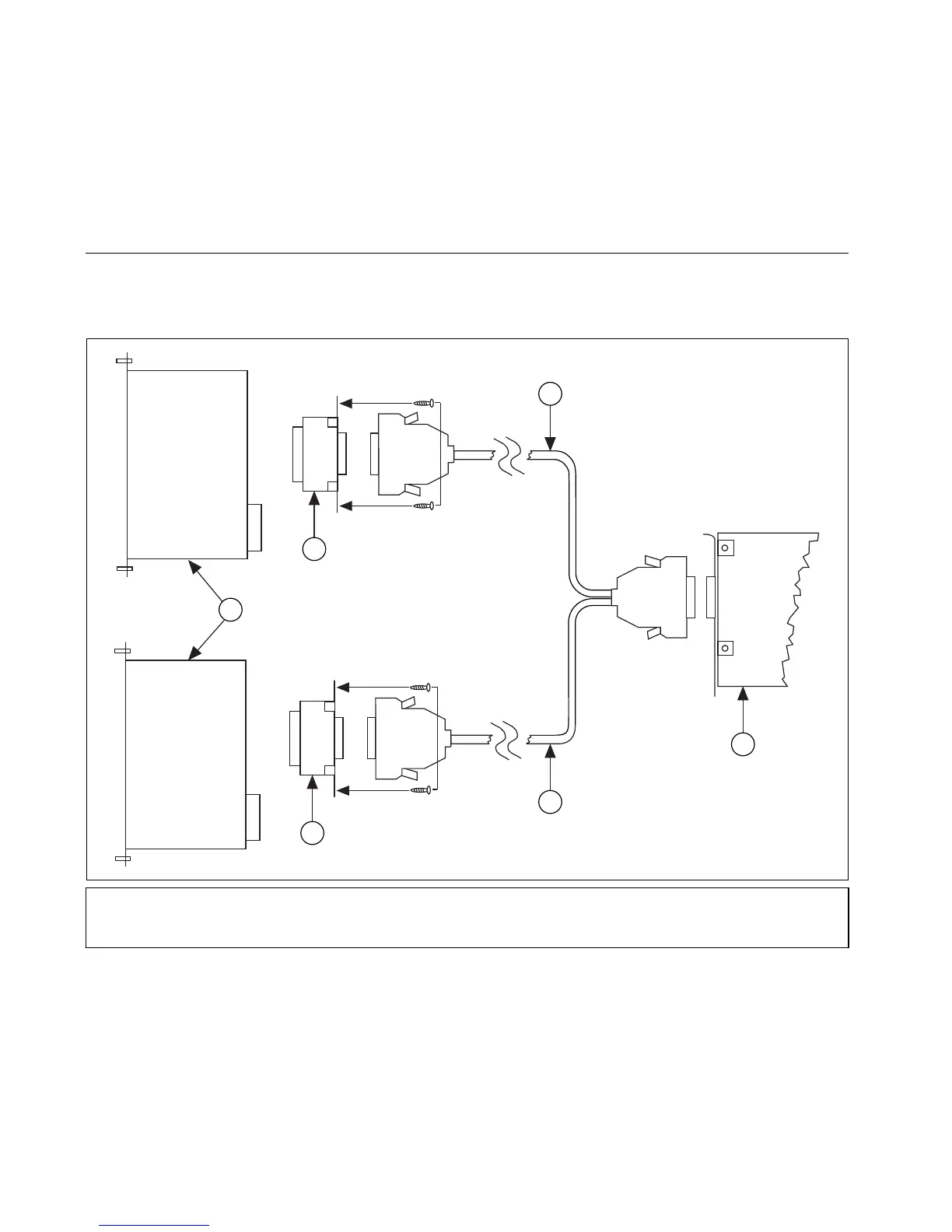

Figure 1. SCXI-1353 Installation
1. Turn off the computer and SCXI chassis.
2. Install the SCXI modules in the SCXI chassis following the
instructions in the module user manual.
1 SCXI Modules
2 SCXI-1349 Shielded Cable Adapter
3 MIO-16 Cable
4 AT-MIO E Series DAQ Device
5 Extended I/O Cable
6 AI-48/DIO-24 Adapter
2
6
5
3
4
1
