Table 9. NI USRP-2921 Module LEDs (Continued)
LED Indication
E Indicates the reference lock status of the LO on the module:
OFF—There is no reference signal, or the LO is not locked to a reference signal.
BLINKING—The LO is not locked to a reference signal.
GREEN—The LO is locked to a reference signal.
F Indicates the power status of the module:
OFF—The module is powered off.
GREEN—The module is powered on.
NI USRP-2922

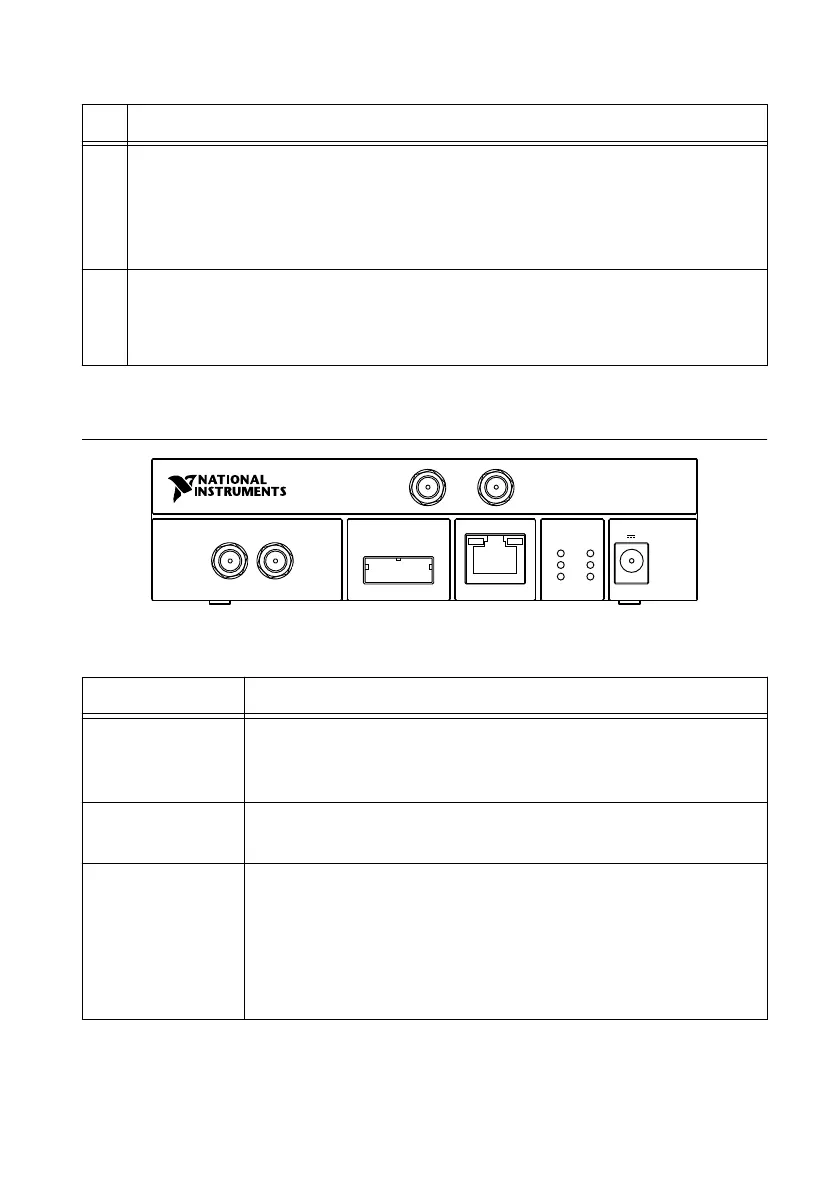

Figure 9. NI USRP-2922 Front Panel
MIMO EXPANSION GB ETHERNET
RX 1
TX 1
REF IN PPS IN
A
C
E
B
D
F
NI USRP
-
2922
40
0 MHz - 4.4 GHz
RX 2
POWER
6 V 3 A
Table 10. NI USRP-2922 Module Front Panel Connectors
Connector Use
RX1
TX1
Input and output terminal for the RF signal. RX1 TX1 is an SMA (f)
connector with an impedance of 50
Ω and is a single-ended input or
output channel.
RX2 Input terminal for the RF signal. RX2 is an SMA (f) connector with an
impedance of 50 Ω and is a single-ended input channel.
REF IN Input terminal for an external reference signal for the local oscillator
(LO) on the device. REF IN is an SMA (f) connector with an
impedance of 50 Ω and is a single-ended reference input. REF IN
accepts a 10 MHz signal with a minimum input power of 0 dBm
(.632 V
pk-pk
) and a maximum input power of 15 dBm (3.56 V
pk-pk
) for
a square wave or sine wave.
26
| ni.com | NI USRP-29xx Getting Started Guide
